N4: Own channel - only 840D sl
9.8 Examples
Extended Functions
592 Function Manual, 03/2013, 6FC5397-1BP40-3BA1

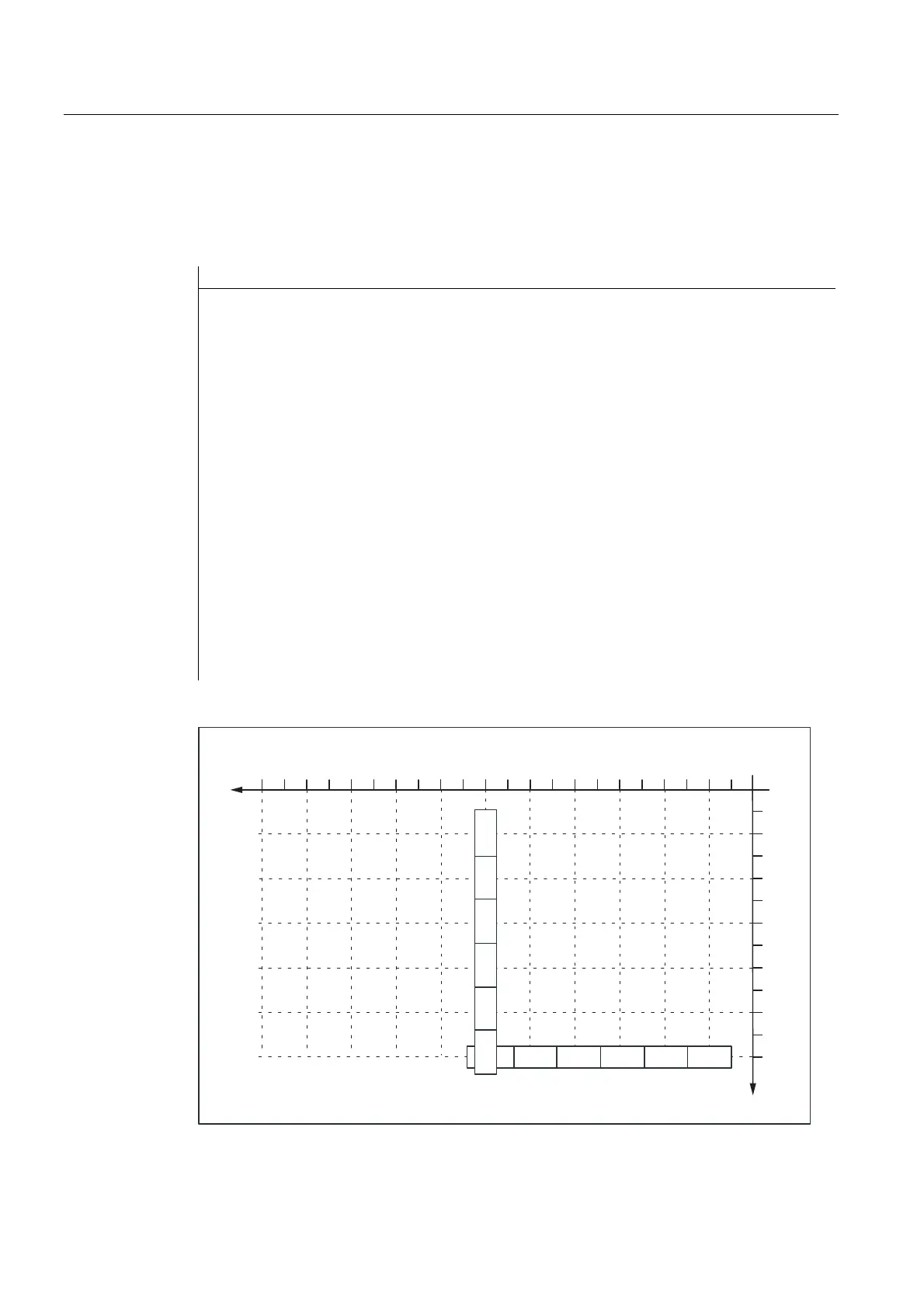

Example 2
This example utilizes the "Tangential control" function. Z has been selected as the name of
the tangential axis.
Program code Comment
:
:
N5 TANG (Z, X, Y, 1, "B") ; Define tangential axis
N8 TANGON (Z, 0) ; Select tangential control
N10 G0 X20 Y120 ; Position 1 is approached
N20 X120 SPP=20 SON ; Defined start of nibbling,
; tangential control selected,
; first stroke at "1", last stroke at "2"
N30 SPOF TANGOF ; Deselect nibbling mode and deselect
; tangential control
N38 TANGON (Z, 90) ; Select tangential control
N40 Y20 SON ; Defined start of nibbling,
; tangential control selected,
; first stroke at "2" rotated 90 degrees to
; block N20, last stroke at "3"
N50 SPOF TANGOF ; Deselect nibbling mode and deselect
; tangential control
N60 M2
<
;
