Siemens SINUMERIK Series Function Manual

W4: Grinding-specific tool offset and tool monitoring
17.1 Tool offset for grinding operations
Extended Functions
810 Function Manual, 03/2013, 6FC5397-1BP40-3BA1
Angle of inclined wheel $TC_TPG8
This parameter specifies the angle of inclination of an inclined wheel in the current plane. It
is evaluated for GWPS.
$6
:RUNSLHFH
*ULQGLQJZKHHO
08
0=
&
=
D
;

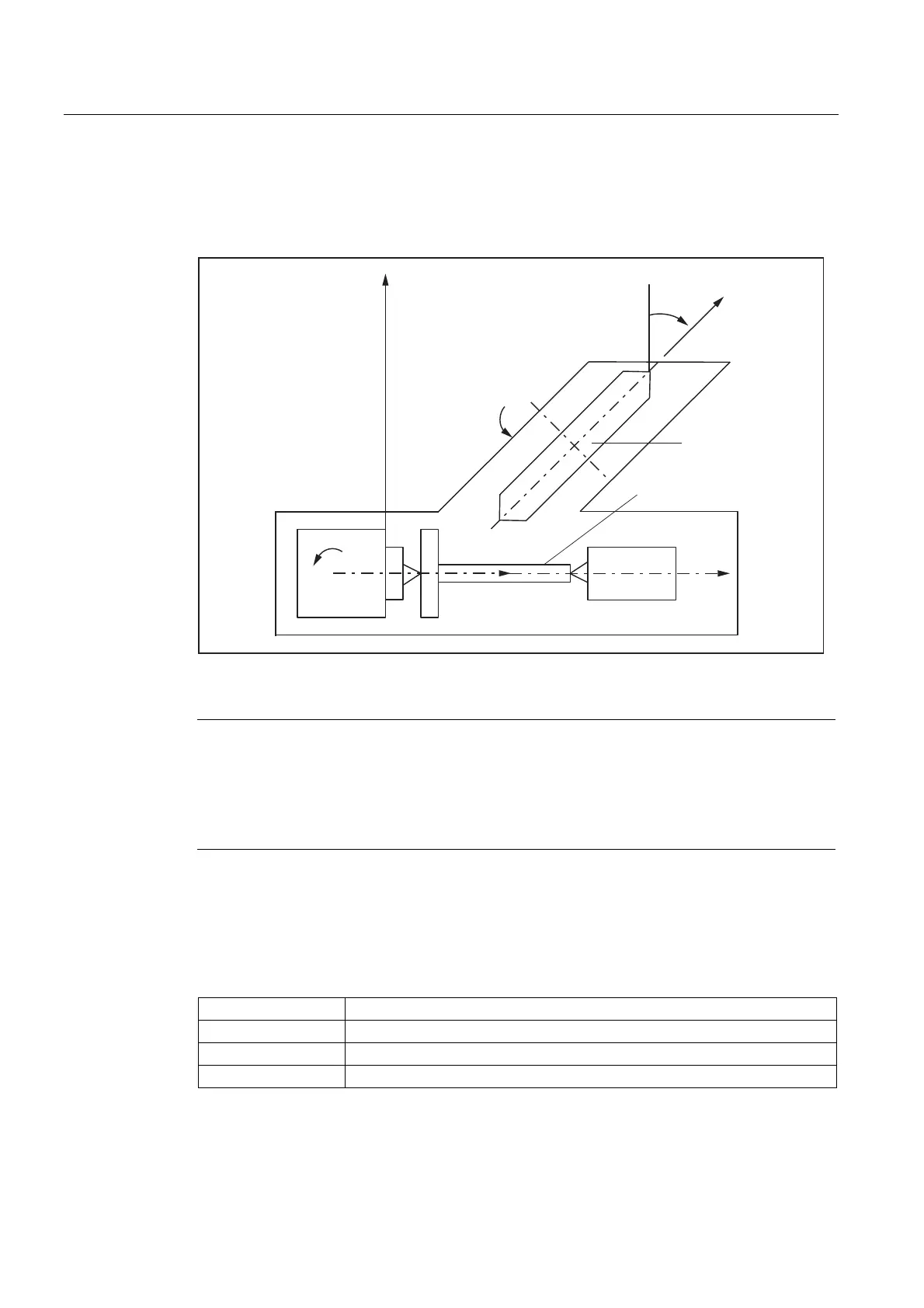

Figure 17-3 Machine with inclined infeed axis
Note
The tool lengths are not automatically compensated when the angle is altered.
The angle must be within the range -90° ≤ $TC_TPG8 < +90°.
On inclined axis machines the same angle must be specified for the inclined axis and the
inclined wheel.
Parameter number for radius calculation $TC_TPG9
This parameter specifies which offset values are used for the GWPS calculation and tool
monitoring of the minimum wheel radius ($TC_TPG3).
$TC_TPG9 = 3 Length 1 (geometry + wear + base, depending on tool type)
$TC_TPG9 = 4 Length 2 (geometry + wear + base, depending on tool type)
$TC_TPG9 = 5 Length 3 (geometry + wear + base, depending on tool type)
$TC_TPG9 = 6 Radius

Siemens SINUMERIK Series Specifications

General

Axes Control	Up to 31 axes
Category	Control Unit
Manufacturer	Siemens
Series	SINUMERIK
Control Type	CNC
Communication Interfaces	Ethernet, USB
Operating Temperature	0°C to 45°C
Protection Class	IP20
Power Supply	24V DC
Display	Color TFT LCD
