Gettingtoknowtheuserinterface

TheES80consistsofspecicvisualelementsthatworktogether.Thevisualelements

provideyouwiththeechoinformationyouneed,theyhelpyoutocontrolthe

functionalityneededtounderstandthisinformation,andnally,theyallowyoutocontrol

theoperationalparameters.Bydefault,theES80presentationcoverstheentirescreen.

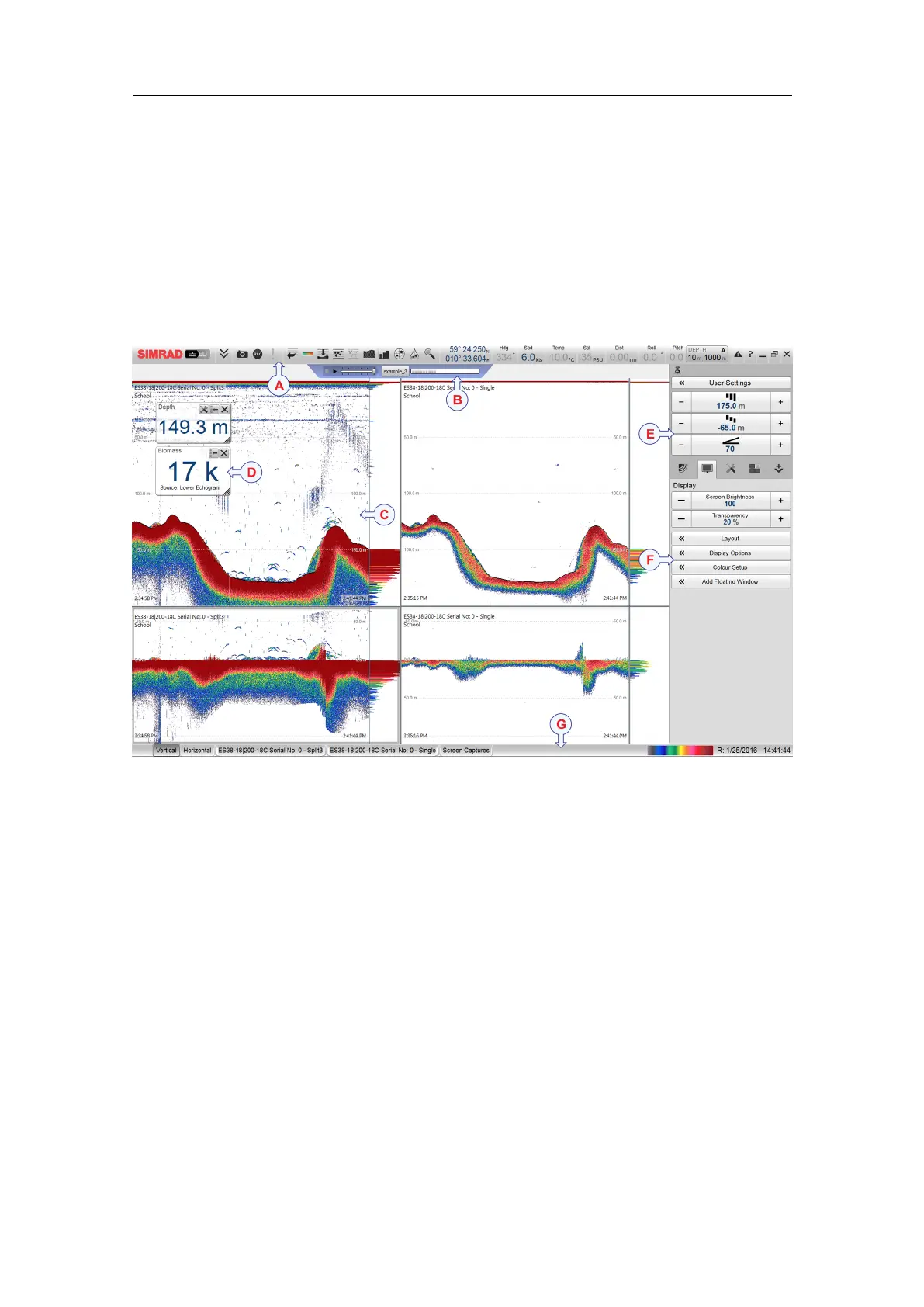

Context

ATopbar

BReplaybar

CEchogramview

DInformationpanes

EMainmenu

FSecondarymenus

GBottombar
