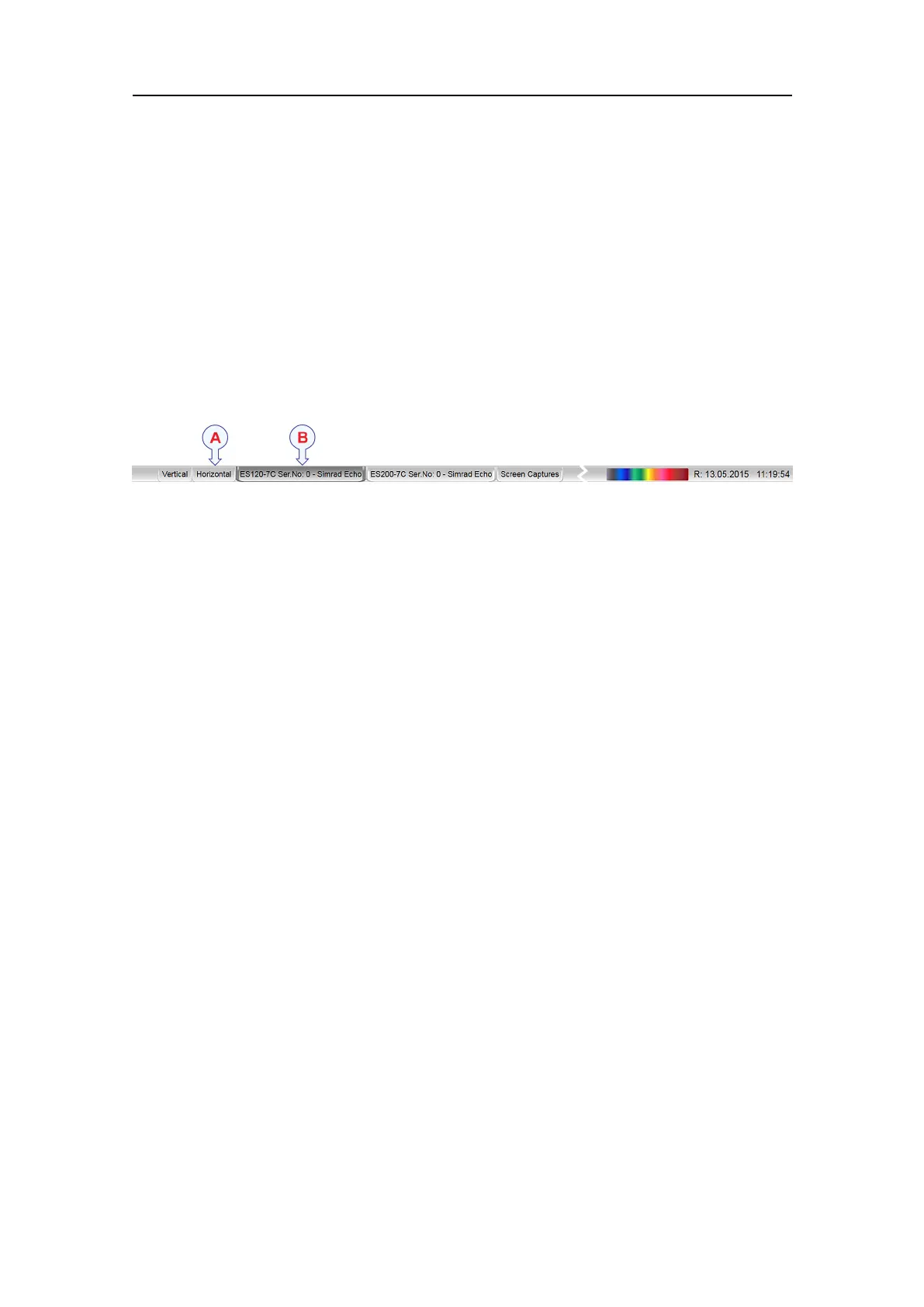

Bottombardescription
ThebottombarislocatedatthebottomoftheES80presentation,andstretchesfromthe
farlefttothefarrightside.Thetabsonthebottombarallowsyoutochoosechanneland
presentationmode.Adedicatedtabprovidesaspecialviewforyoutoseethescreen
capturesyouhavemade.Thebottombaralsoshowsyouthecurrentcolourscale,as
wellasthetimeanddate.
Thenumberoftabsavailableonthebottombardependsonhowmanychannelsyour
ES80has.Twotab"groups"allowyoutoselectchannelsandviews.Thisexampleshows
theES80withtwochannels.Inthiscontext,thephrasechannelisusedasacommon
termtoidentifythecombinationoftransceiver,transducerandoperatingfrequency.
APresentationmodes
Threepresentationmodesareavailablewhenyouwishtoseealltheechogram
channelssimultaneouslyintheES80presentation.Thethreetabswillarrangethe
echogramviewsvertically,horizontally,orinrectangularrowsandcolumns.
Bydefault,theechogramviewsareautomaticallyarrangedintheES80presentation.
Youcanclickanddragtheborderofeachindividualviewtochangeitssize.The
sizeoftheotherviewsarereducedaccordingly.
BSelectingindividualechogramchannels
Eachchannelisshownwithadedicatedtab.Thechannelisidentiedwiththe
nameofthetransducerinuse.Thisnameisthecustomnameyouprovidedwhen
youinstalledthetransducer.Selectaspecictransducertabtoseeonlythatchannel
intheES80presentation.
Relatedtasks
Selectingechogramviewsonthebottombar,page108
SimradES80ReferenceManual

Simrad ES80 Specifications

General

Operating Temperature	-15°C to +55°C
Type	Echosounder
Transceiver	External
Applications	Fisheries research, commercial fishing
Depth Range	Up to 3000 meters
Interface	Ethernet, NMEA 2000
Frequency Range	18 kHz, 38 kHz, 70 kHz, 120 kHz, 200 kHz, 333 kHz
