406273/C

441

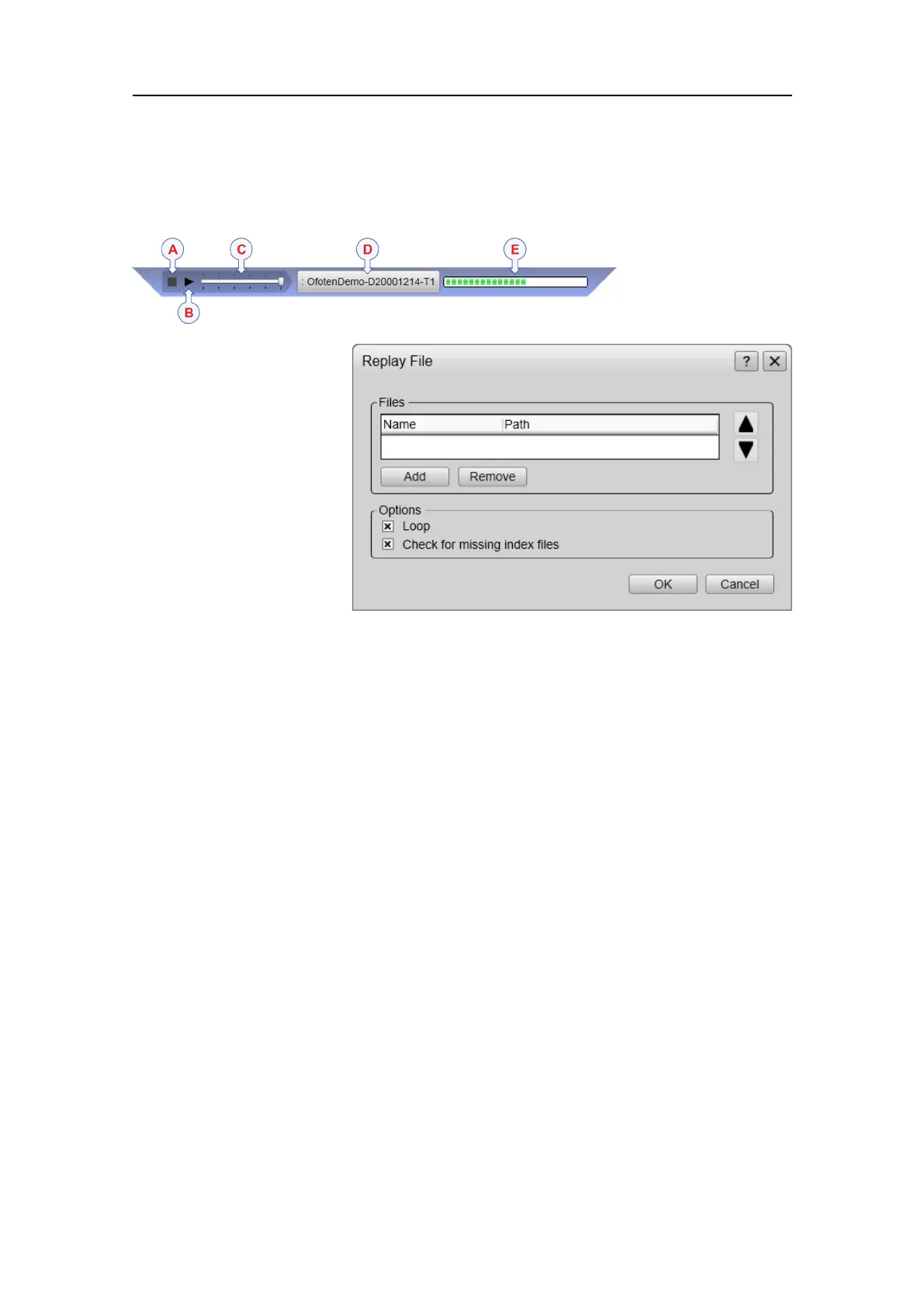

Allplaybackiscontrolledbythereplaybar.Thereplaybaropensautomaticallyatthe

topoftheES80presentationwhenyouchooseReplaymode.

Details

Files

Thislistdisplaysthelesthatarecurrentlyavailableforplayback.

Add

SelectAddtoincludeadditionalle(s)intheFileslist.Astandardoperatingsystem

dialogboxisopenedtoletyouchooseles.

Remove

SelectaleinFileslist,thenselectRemove.Theleisremovedfromthelist,but

notfromtheharddisk.Ifyouwishtodeletealefromyourharddisk,youneed

tousealemanagerprogram.

Loop

SelectLoopifyouwanttheES80toplaybackallthelesintheFileslistinan

endlessloop.Thereplaywillrununtilyoustopitinthereplaybar,orchoose

adifferentoperationalmode.

Functionsanddialogboxes
