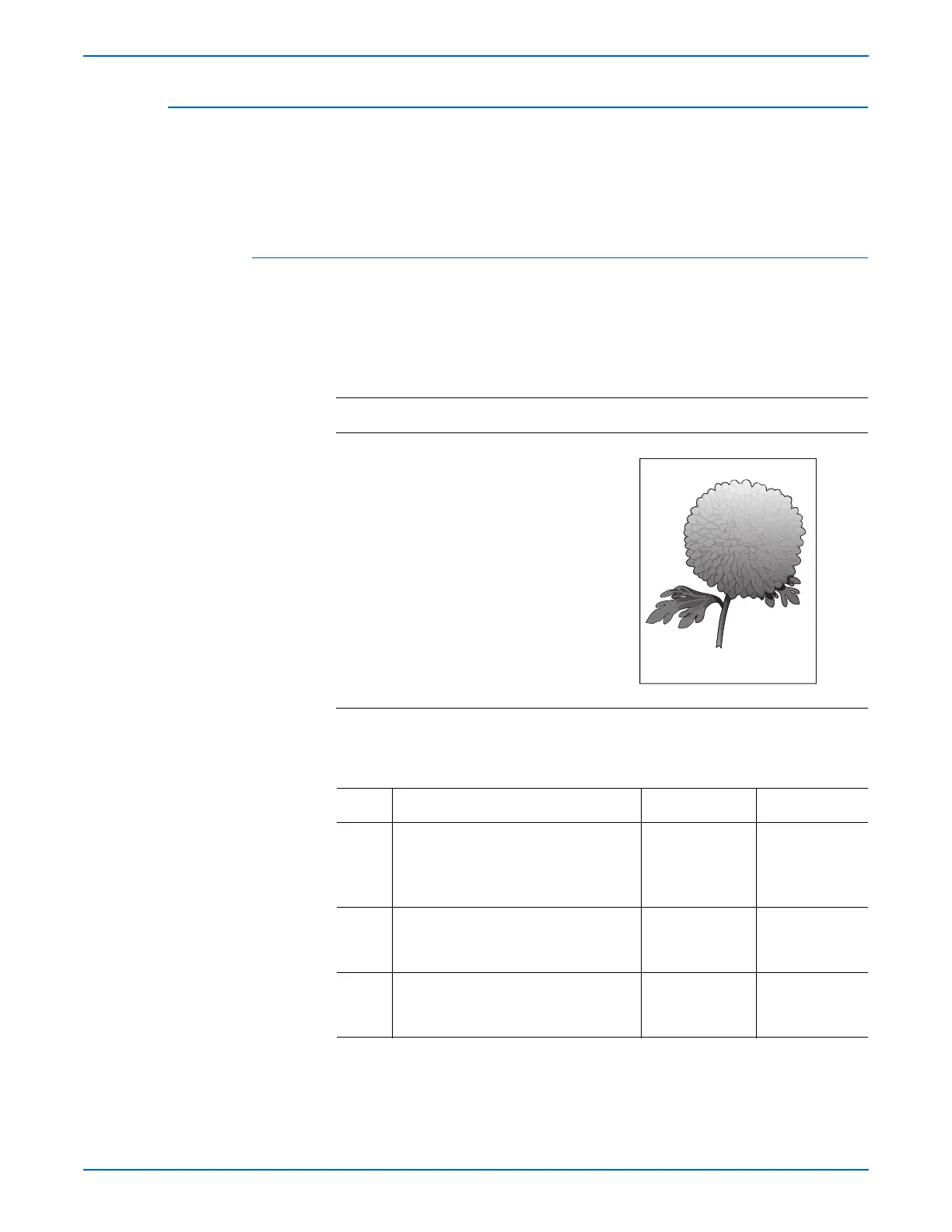

WorkCentre 3210/3220 Multifunction Printer Service Manual 5-13
Print-Quality Troubleshooting
Uneven Density
Print density is uneven between the left and right sides. Possible causes
include; uneven spring force at the ends of the Transfer Roller, the springs are
damaged, the Transfer Roller is improperly installed, or the Transfer Roller
bushing or holder is damaged.
Initial Actions
■ Check the paper transfer path.
■ Ensure there is no debris in the transfer path.
Troubleshooting Reference Table
Applicable Parts Example Print
■ Transfer Roller, PL1.0.11
■ Print Cartridge, PL1.0.21
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check the Transfer Roller installation.
Reseat the Transfer Roller if necessary
(
8-10).
Does the image quality improve?
Complete. Go to step 2.
2 Check the Print Cartridge.
Is the Print Cartridge empty?
Replace the
Print Cartridge
(
8-7).
Go to step 3.
3 Check the Print Cartridge for damage.
Is the Print Cartridge damaged?
Replace the
Print Cartridge
(8-7).
Complete.
Color Uneven or Wrong (Process Direction)
