2-18 WorkCentre 3210/3220 Multifunction Printer Service Manual
Theory of Operation
Control Panel
The Control Panel is the user interface for display of printer status and
operation of the printer functions.
Electrical Components
The printer’s major electrical components consist of these boards:
■ ADF Control Board
■ Scanner Board
■ Control Panel Board
■ Main Controller Board
■ Power Supply (SMPS)
■ HVPS
@ / . ‘
ABC
DEF
GHI JKL MNO
PQRS TUV
Back
Status
Direct USB
WorkCentre 3220
ID Card Copy
i
Menu
& + - ,
WXYZ
Address Book
Redial / Pause
On Hook Dial
OK

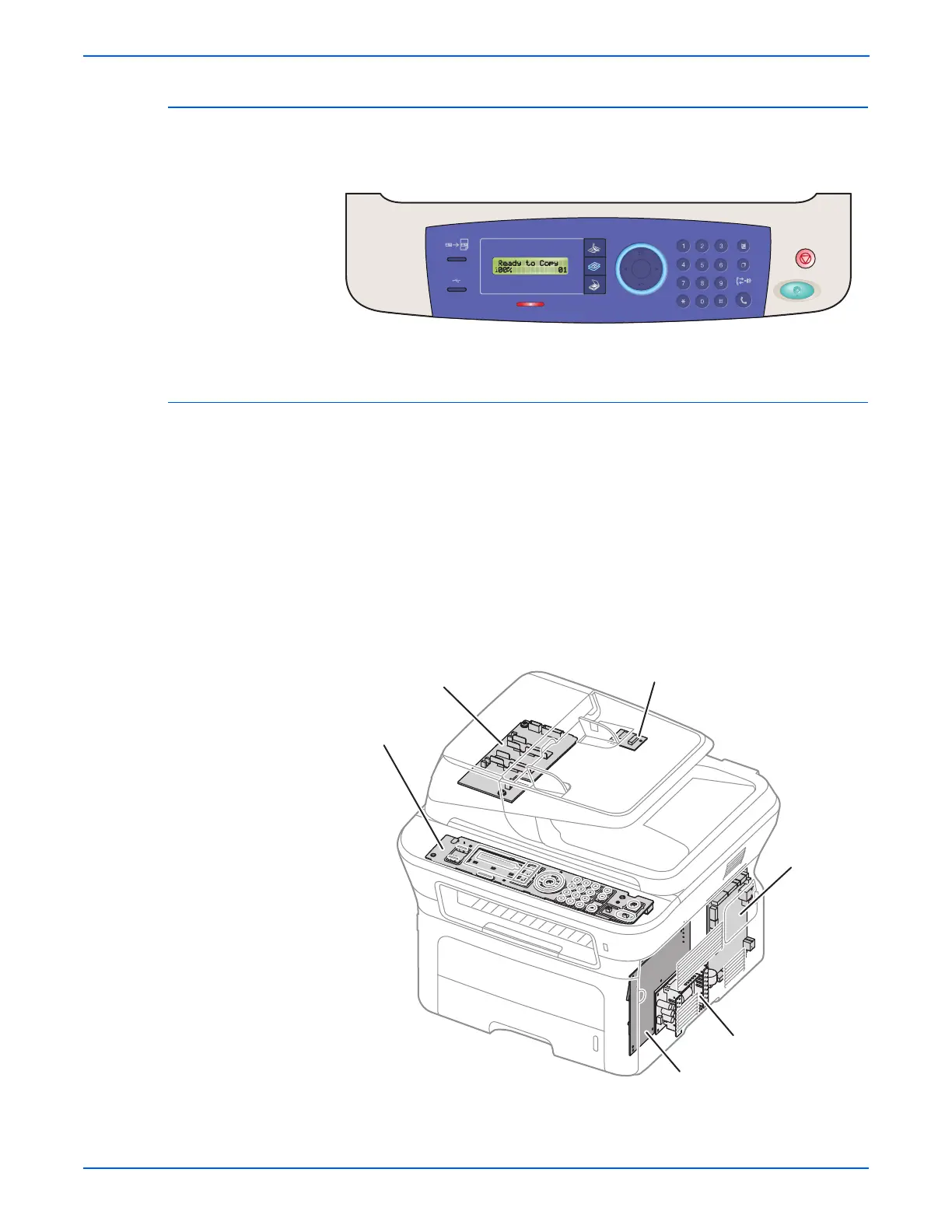

s3210mfp-248
ADF Control Board
Power Supply
(SMPS)
HVPS
Main
Controller
Board
Control Panel
Board
Scanner Board
s3210mfp-138

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
