Xerox WORKCENTRE 3210 Service Manual

5-32 WorkCentre 3210/3220 Multifunction Printer Service Manual

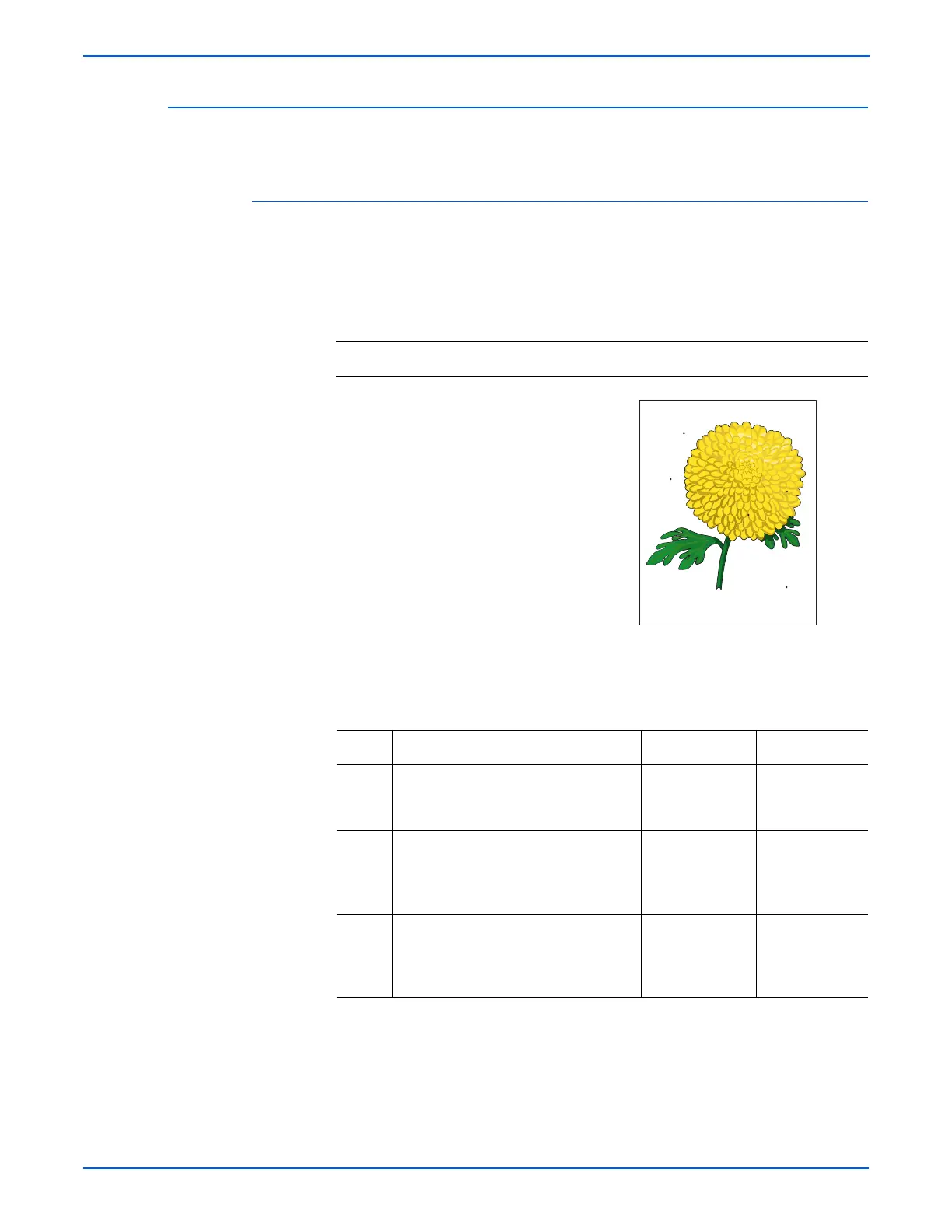

Print-Quality Troubleshooting
Spots from ADF
There are spots on copies from the ADF.
Initial Actions
■ Check the document glass.
■ Ensure there are no debris on the document glass.
Troubleshooting Reference Table
Applicable Parts Example Print
■ ADF Scan Assembly, PL6.0.0
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check the original document.
Are there spots on the original
document?
Replace the
original
document.
Go to step 2.
2 Check for any debris on the platen
glass.
Is there any debris?
Remove clean
the platen glass
using a lint-free
cloth.
Go to step 3.
3 Does the image quality improve? Complete. Replace the
ADF Scan
Assembly
(
8-103).
Spots on Glass

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
