WorkCentre 3210/3220 Multifunction Printer Service Manual 2-9
Theory of Operation
Image Input Terminal
The Image Input Terminal (IIT) generates the image data for copies and scans
and is made up of two major subsystems:
■ Automatic Document Feeder (ADF)
■ Scanner Assembly with the Control Panel
Automatic Document Feeder
The ADF automatically feeds original documents from the ADF input tray.

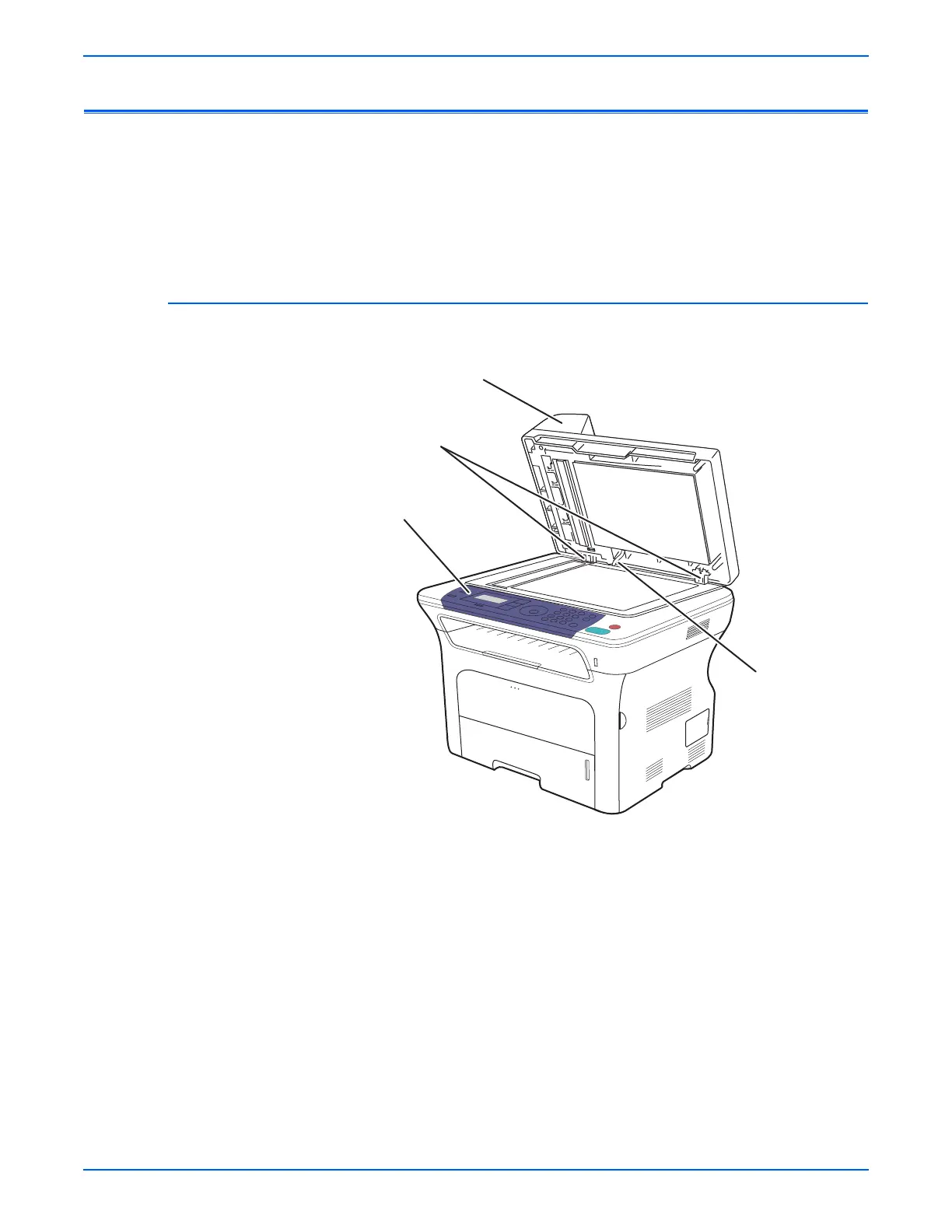

ADF Assembly
ADF Hinges
Control Panel
ADF Connector
s3210mfp-130

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
