8-70 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Paper Feeder
Out Bin Full Sensor
PL3.0.10

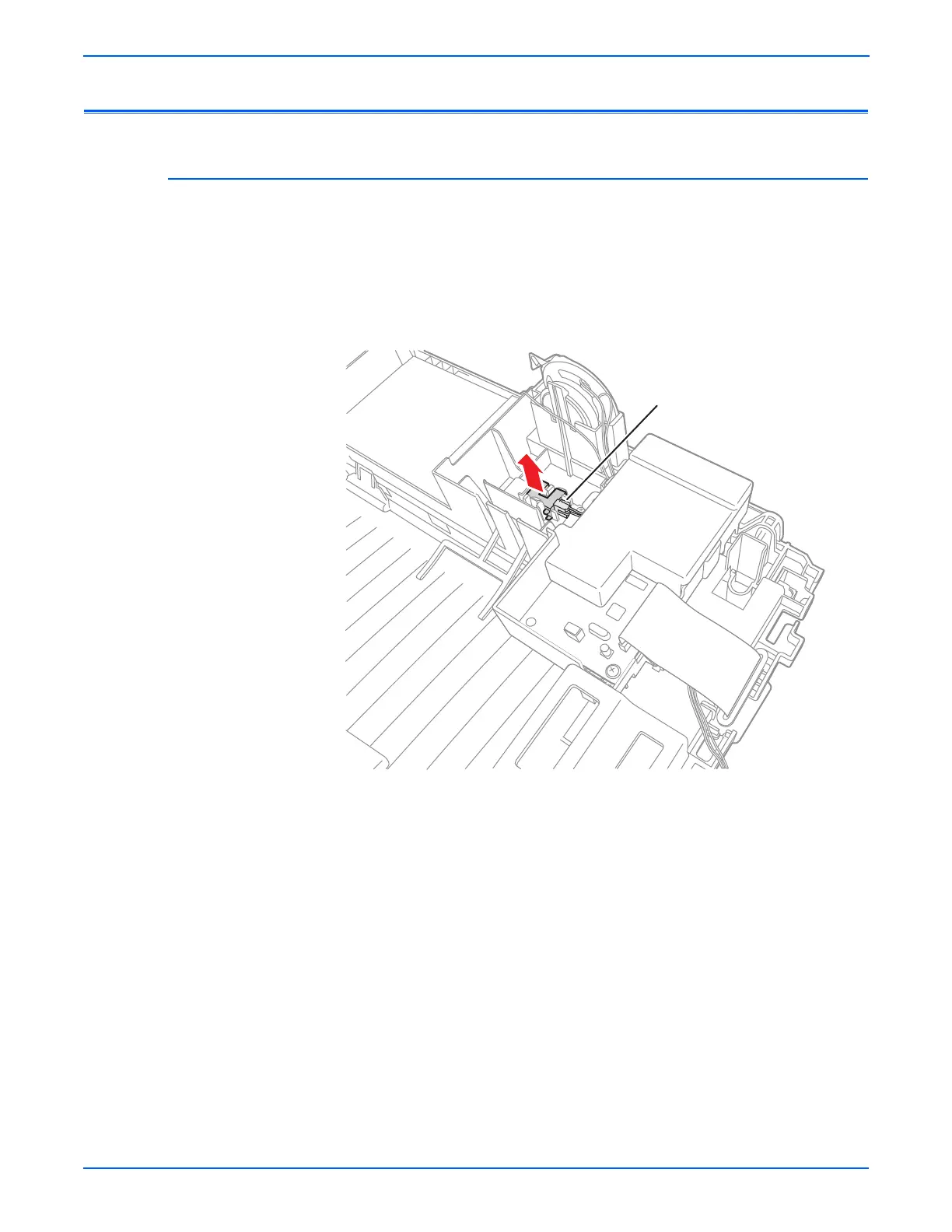

1. Remove the Scanner Assembly (page 8-48).
2. Disconnect the wiring harness CN41.
3. Release the Bin Full Sensor from the middle cover.
4. Remove the Bin Full Sensor.
