Xerox WORKCENTRE 3210 Service Manual

WorkCentre 3210/3220 Multifunction Printer Service Manual 5-35
Print-Quality Troubleshooting
Test Prints
This section provides a sample of the test patterns available from the Tech
mode menu. These test prints highlight possible performance problems and
can help isolate the location of print problems.

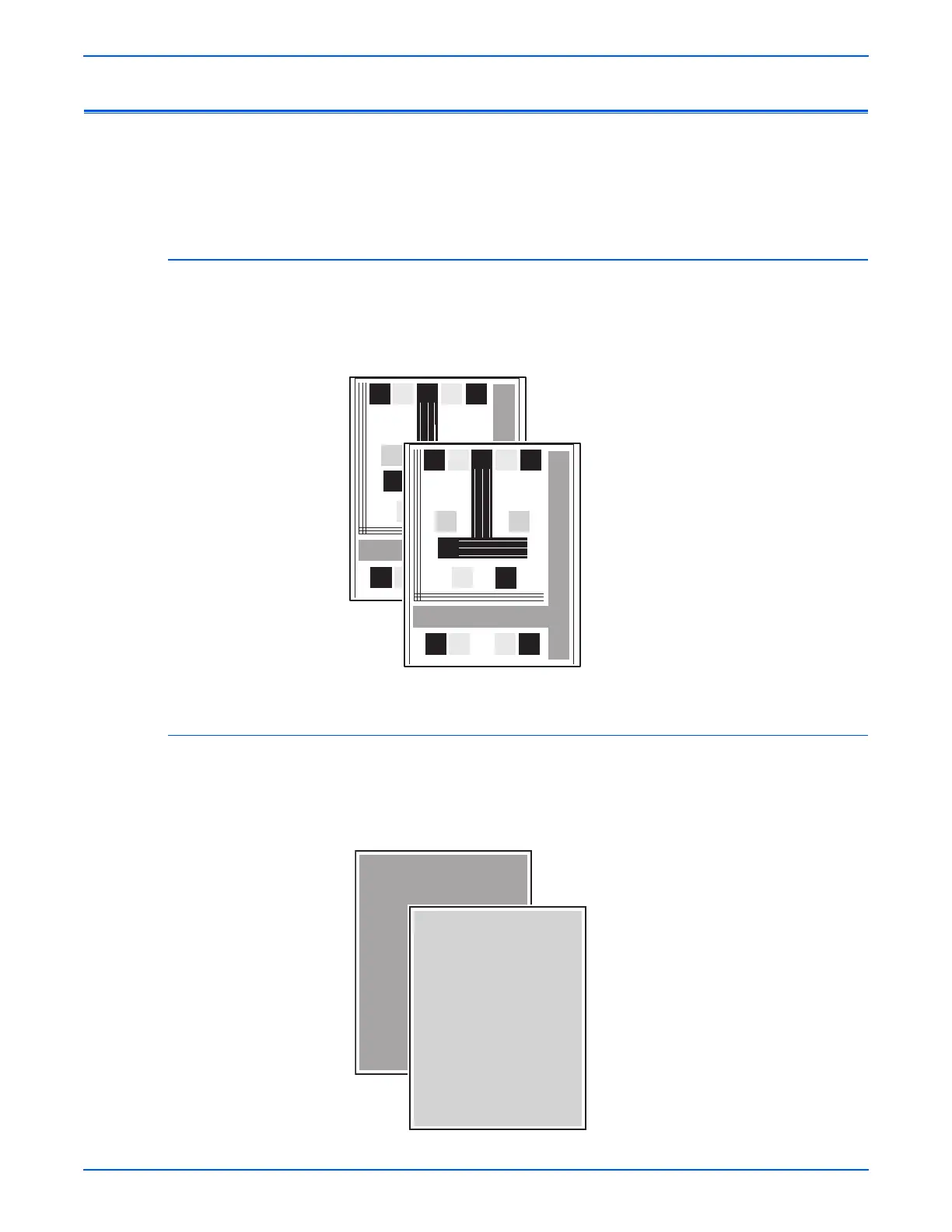

TP 1 and 2 Lines
TP 1 and 2 provides a variety of different line styles in both process and cross-
process directions. The pattern is used to check registration, dot size and
image density.
TP 3 and 4 Halftones
TP 3 and TP 4 are halftones used to check for dropout (white spot)
performance, banding, fixing (fusing) and image density. TP 4 includes a
margin line.
1 x 4
1 x 4
1 x 4 1 x 4
2 x 2
1 x 2
1 x 2
1 x 4
S600 PATTERN
Date :
Machine No.:
Temperature:
Humidity :
Tested by :
1 dot Line
4 dot Line
[2] DC:11332 TI:17 TADC:121 TV:2 TP:88 DP:193 TEMP:115
s3210mfp-199
1 x 4
1 x 4
1 x 4 1 x 4
2 x 2
1 x 2
1 x 2
1 x 4
S600 PATTERN
Date :
Machine No.:
Temperature:
Humidity :
Tested by :
1 dot Line
4 dot Line
[2] DC:11332 TI:17 TADC:121 TV:2 TP:88 DP:193 TEMP:115
s3210mfp-200

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
