Xerox WORKCENTRE 3210 Service Manual

3-12 WorkCentre 3210/3220 Multifunction Printer Service Manual
Error Messages and Codes

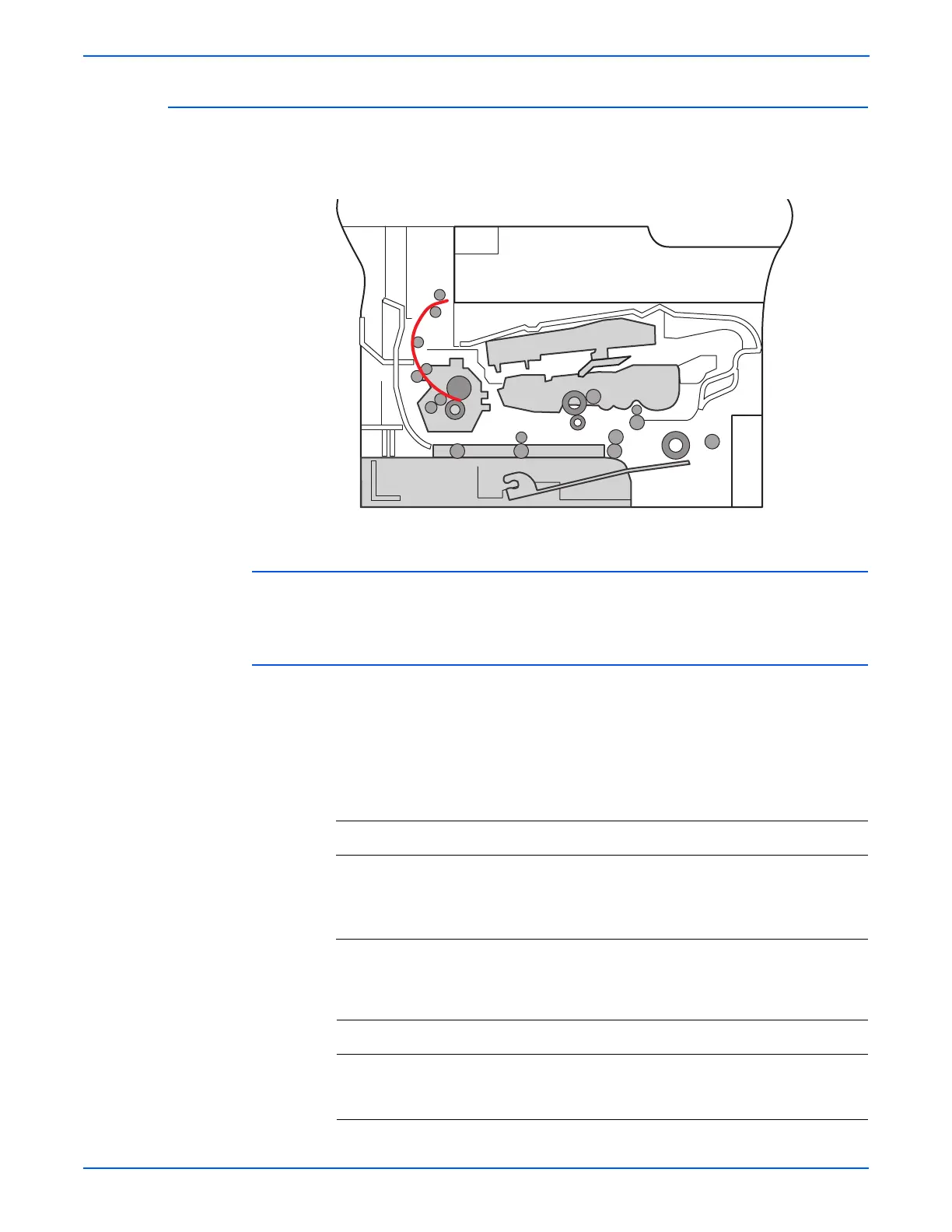

Paper Jam 2
There is a jam in front of or inside of the Fuser. The media did not reach the
Exit Sensor on time.
Applicable Error Message
■ Paper Jam 2
Initial Actions
■ Check the paper path for obstructions or debris.
■ Cycle printer power.
■ If the problem persists, refer to the following procedure.
Troubleshooting Reference Table
Applicable Parts Wiring and Plug/Jack Map References
■ Fuser, PL8.0.0
■ Guide Claw, PL8.0.16
■ Exit Actuator, PL8.0.19
■ Exit Sensor, PL8.0.37
■ Map 3 - Sensor Locator
■ Power and Fuser
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check for media inside the Fuser.
Is there media in the Fuser?
Remove the
media and clean
the Fuser rollers.
Go to step 2.
