WorkCentre 3210/3220 Multifunction Printer Service Manual 8-9
Service Parts Disassembly
Pick Up Roll
PL4.0.26

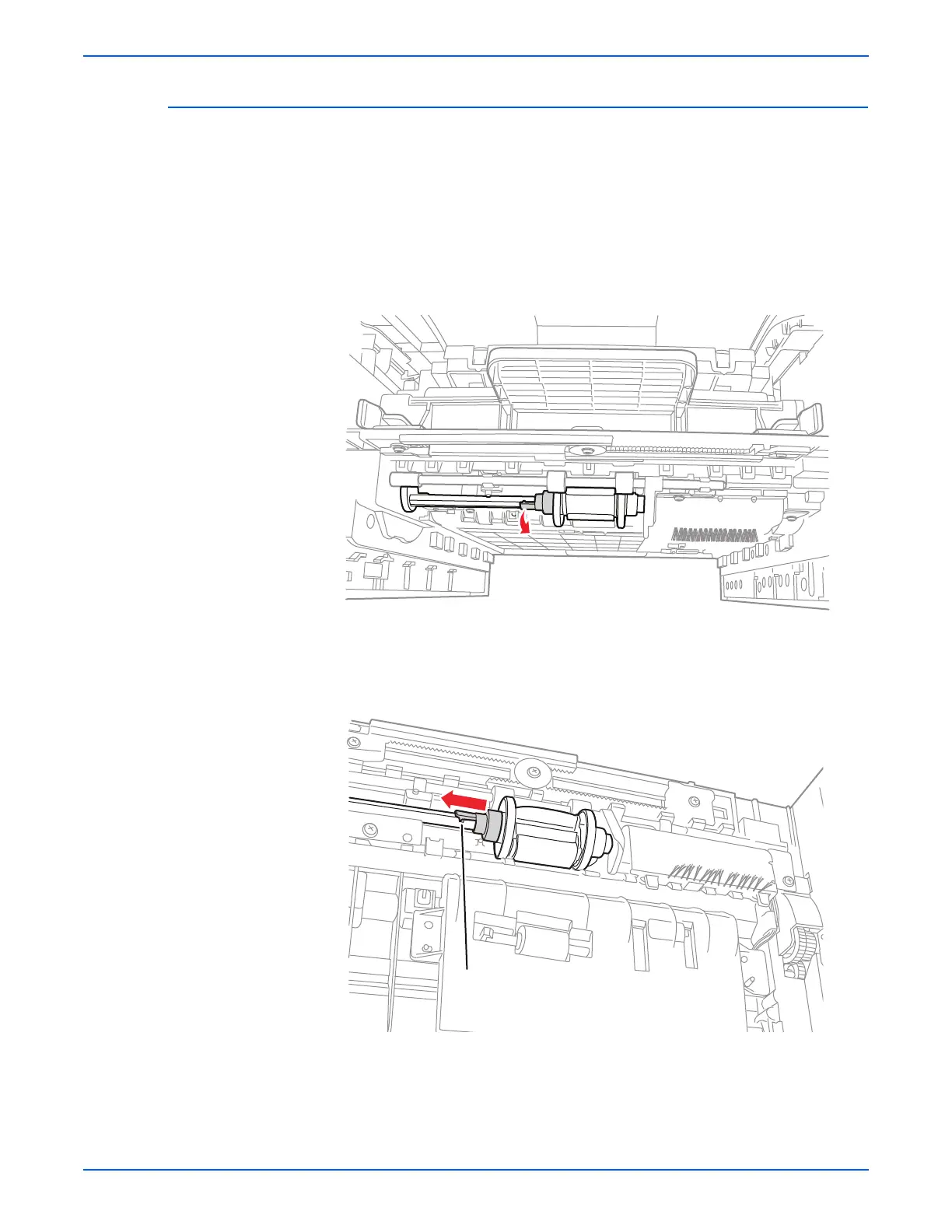

1. Remove tray 1.
Do not over flex the tab. This will prevent the pick up idle from resting
securely after installation.
2. Release the pick up idle latch from the pick up shaft.
3. Slide the pick up idle toward the left side pass the groove on the shaft.
