8-10 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly

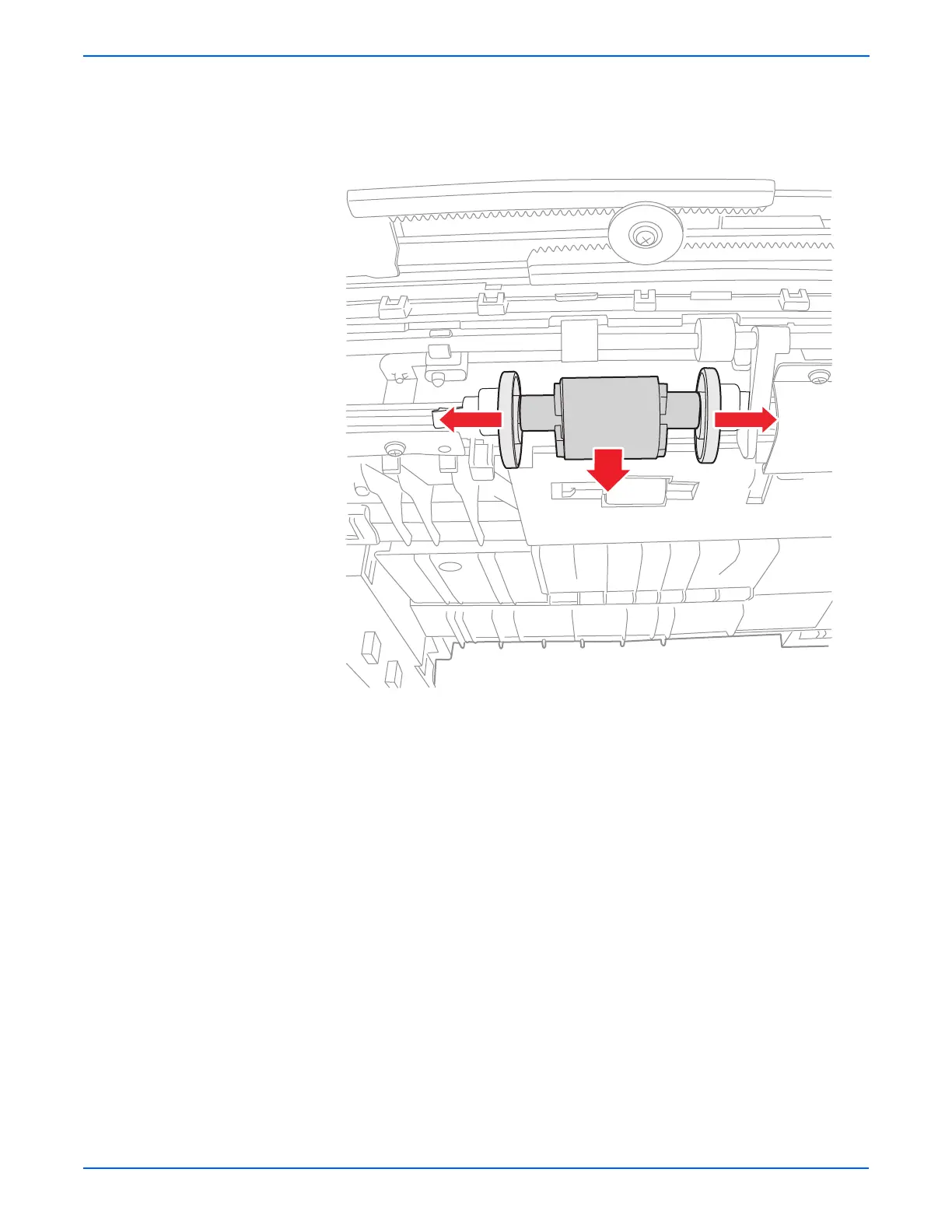

4. Slide the pick up stopper toward the left side away from the pick up
housing.
5. Rotate the pick up rubber and slide it out away from the shaft.
6. Remove the Pick Up Roll.
s3210mfp-023
