Xerox WORKCENTRE 3210 Service Manual

WorkCentre 3210/3220 Multifunction Printer Service Manual 5-19
Print-Quality Troubleshooting
Vertical Lines are Curved
When printing, vertical lines are not straight.
Initial Actions
■ Cycle printer power.
■ If the problem persists, refer to the following procedure.
Troubleshooting Reference Table

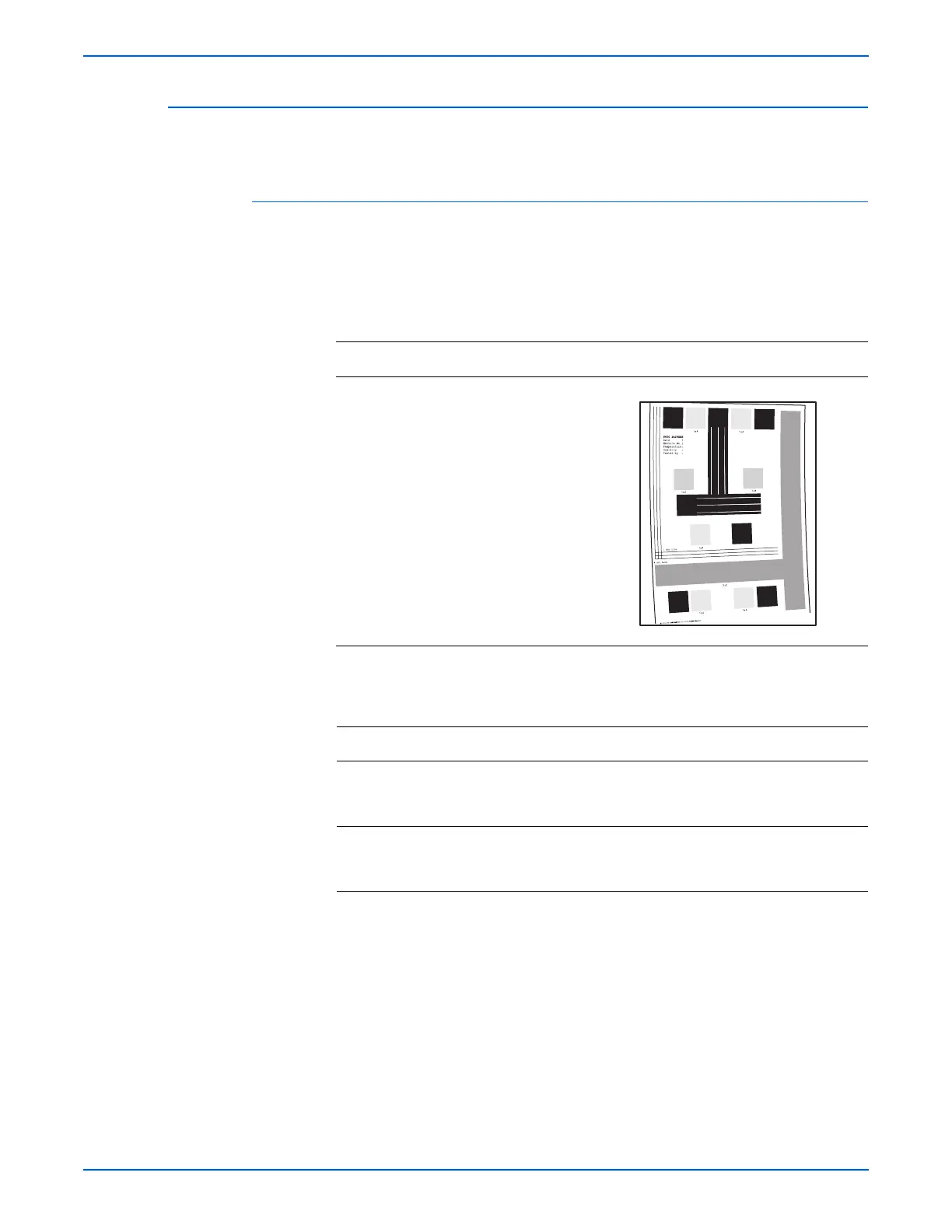

Applicable Parts Example Print
■ Main Controller Board, PL1.0.2
■ Laser Unit, PL1.0.12
■ Print Cartridge, PL1.0.21
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check the Power Supply for the
correct voltage.
Does the voltage show +24V?
Go to step 2. Replace the
Power Supply
().
2 Replace the Laser Unit ().
Does the error still occur?
Replace the
Main Controller
Board ().
Complete.
s3210mfp-206

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
