WorkCentre 3210/3220 Multifunction Printer Service Manual 8-95
Service Parts Disassembly
Xerographics
Laser Unit
PL1.0.12

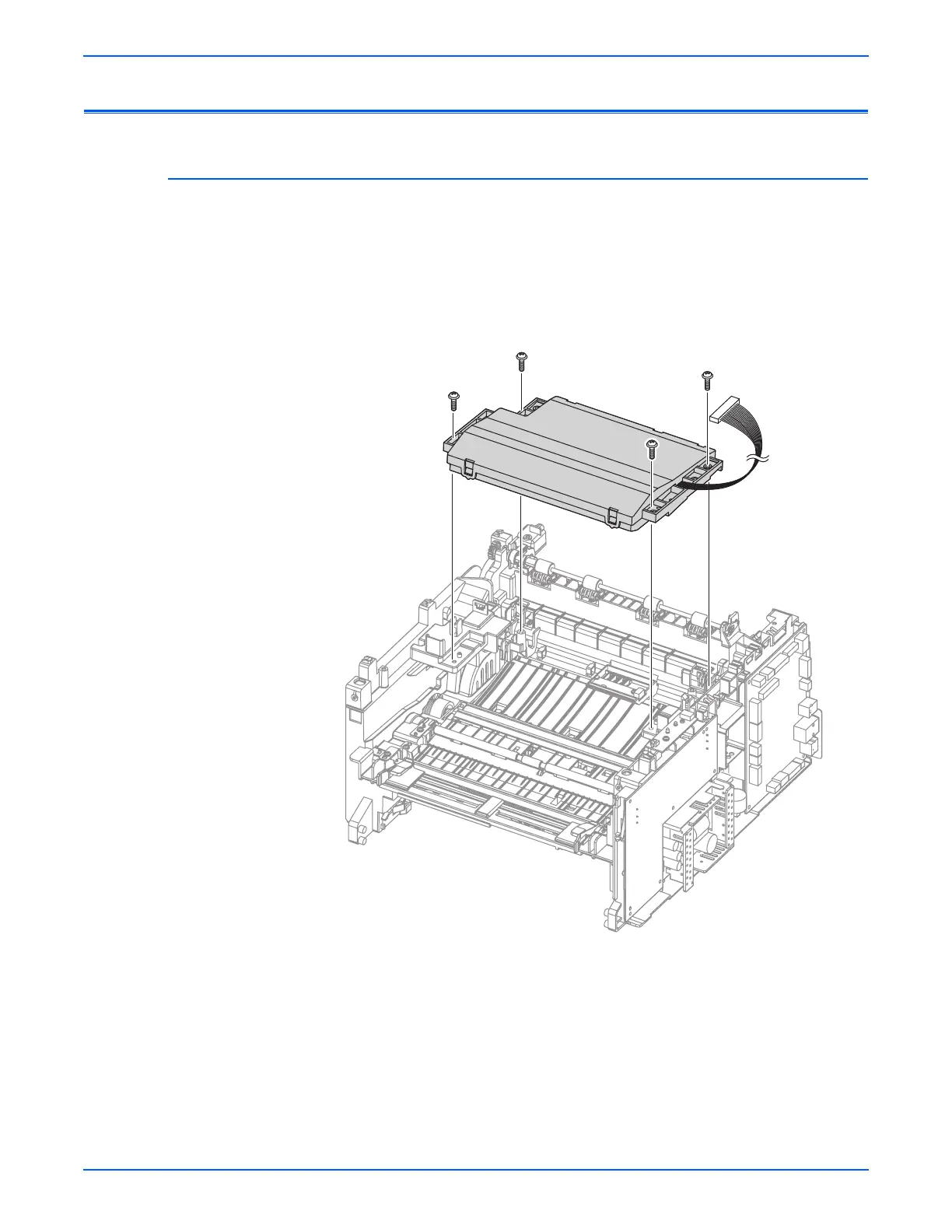

1. Remove the Middle Cover (page 8-65).
2. Disconnect the Laser Unit wiring harness CN7 connector.
3. Remove 4 screws (10 mm, silver) that secure the Laser Unit.
4. Remove the Laser Unit.
To Next Page
