WorkCentre 3210/3220 Multifunction Printer Service Manual 8-91
Service Parts Disassembly

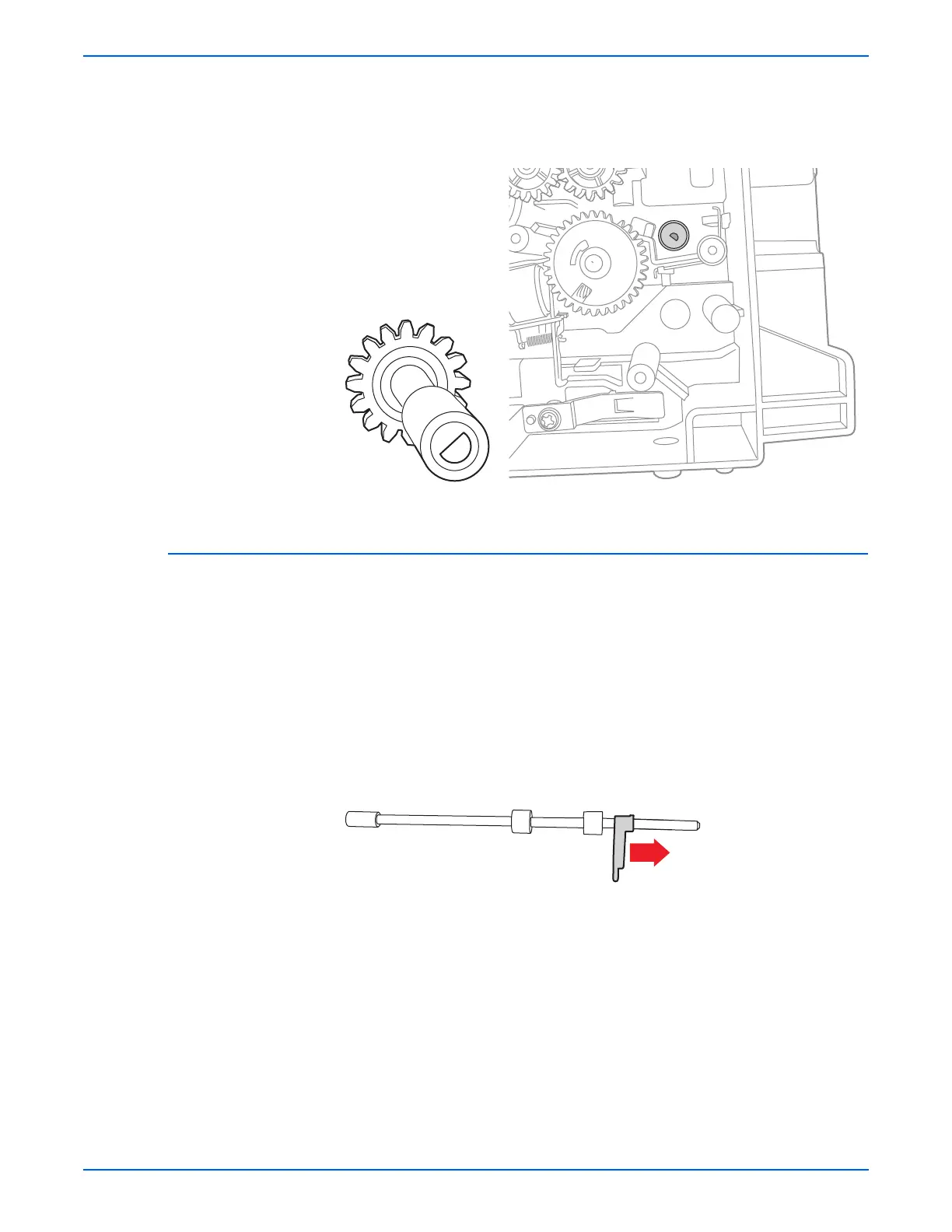

Align the D-shaped feed roller with the D-shaped shaft.
Empty Actuator
PL4.0.84
1. Remove Tray 1.
2. Remove the Print Cartridge (page 8-8).
3. Remove the Scanner Assembly (page 8-48).
4. Remove the Feed Roller (page 8-81).
5. Slide the Empty Actuator out from the feed roller.
