Xerox WORKCENTRE 3210 Service Manual

5-30 WorkCentre 3210/3220 Multifunction Printer Service Manual

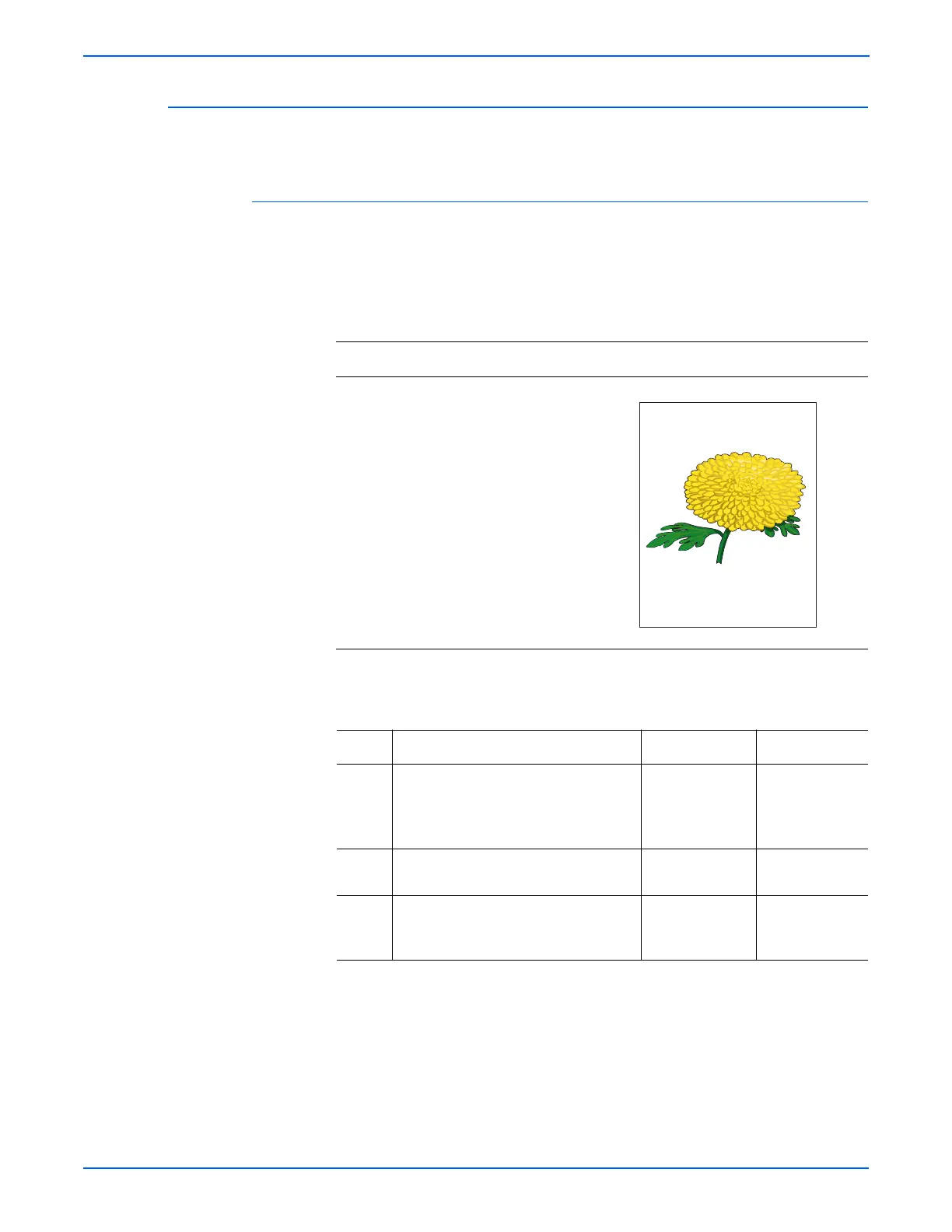

Print-Quality Troubleshooting
Incorrect Magnification
Incorrect magnification when copying with the ADF feeding.
Initial Actions
■ Check the paper feed path.
■ Cycle system power.
Troubleshooting Reference Table
Applicable Parts Example Print
■ ADF Scan Assembly, PL6.0.0
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check media condition.
Is the media dry, recommended,
loaded correctly, and meet ADF feed
specifications?
Go to step 2. Replace the
media or use
the platen.
2 Is the ADF closed against the
document glass completely?
Go to step 3. Close the ADF.
3 Cycle system power.
Does the error still occur?
Replace the ADF
Scan Assembly
(
8-129).
Complete.
Magnification Incorrect
