8-48 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Scanner Assembly
Platen Assembly
PL6.0.3
1. Remove the ADF (page 8-31).
2. Remove the Right Cover (page 8-62).

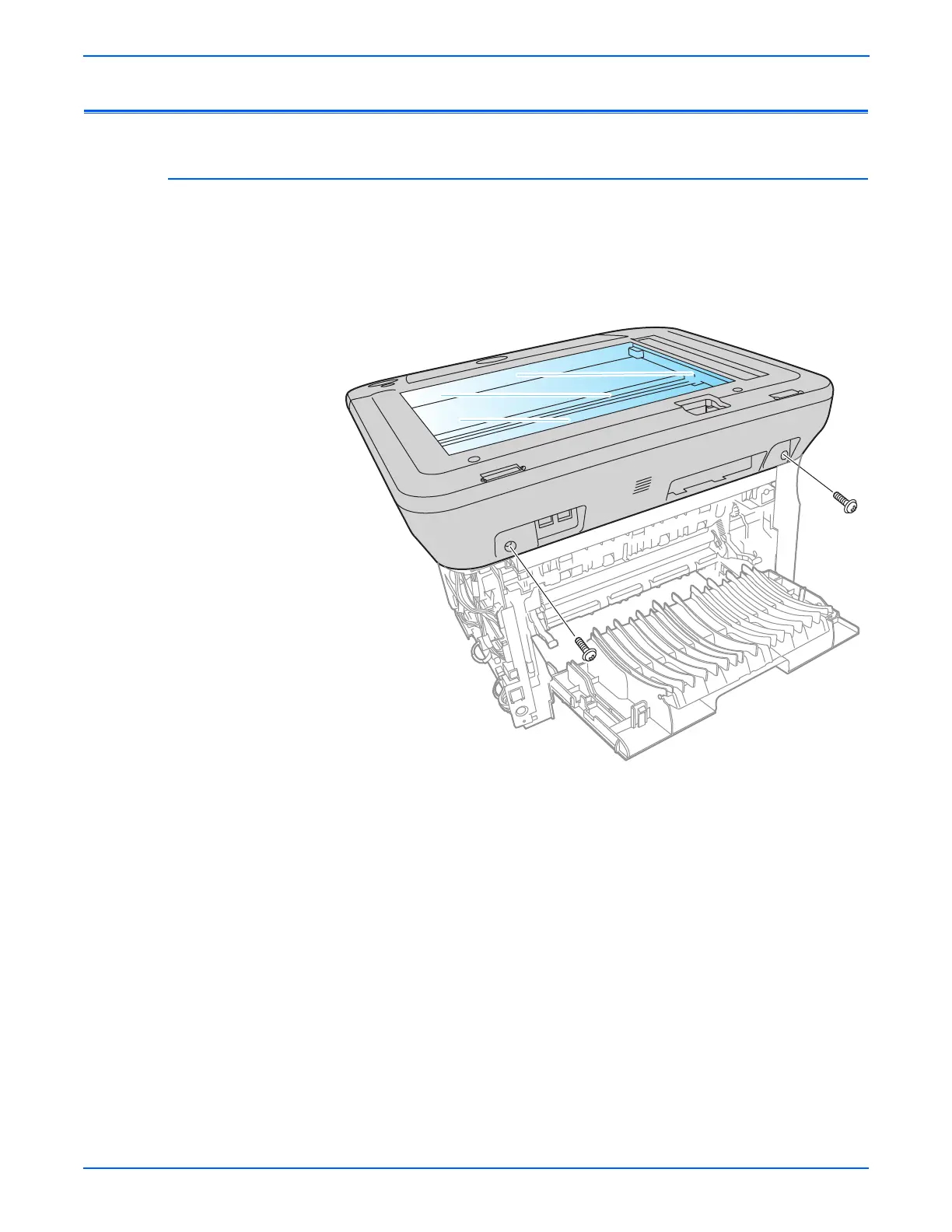

3. Remove 2 screws (12 mm, silver) that secure the Platen Assembly.
s3210mfp-159
