8-108 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Power Supply Fan
PL2.0.4-5

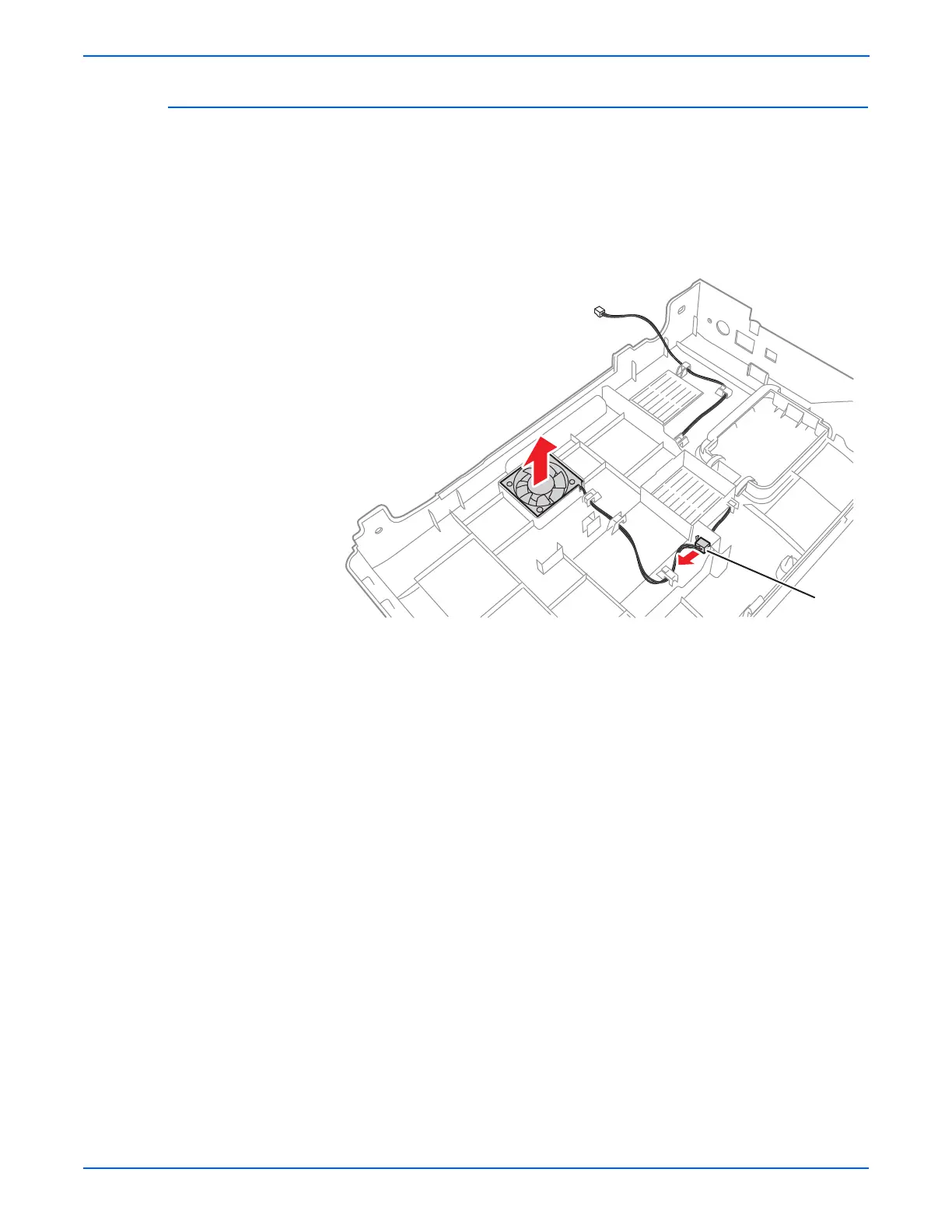

1. Remove the Right Cover (page 8-62).
2. Disconnect the wiring harness connector CN48.
3. Release the wiring harness from the retainers.
4. Release the Power Supply Fan from the Right Cover.
