8-120 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Motor Housing
PL10.0.9

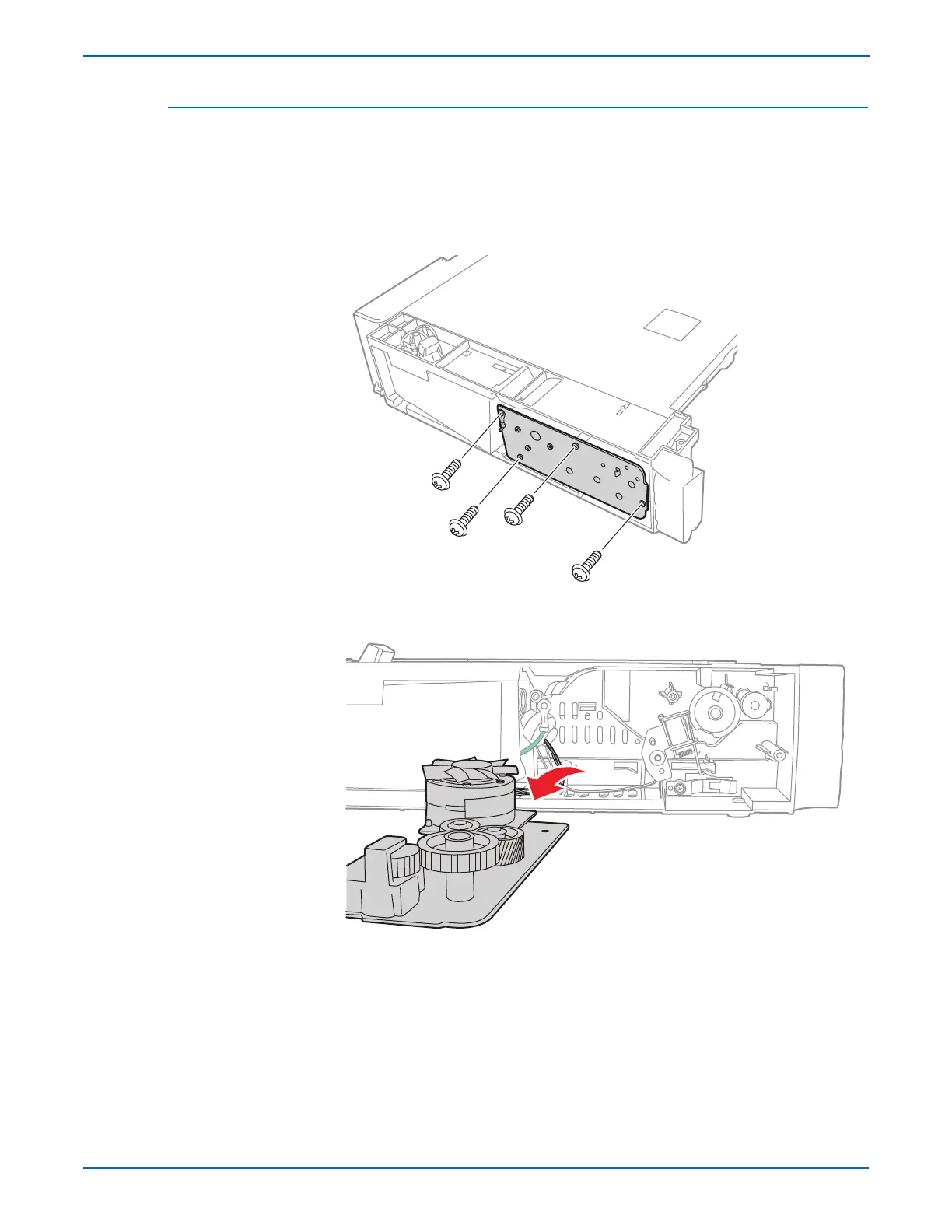

1. Remove the Optional Tray Assembly (page 8-117).
2. Remove the Left Cover (page 8-119).
3. Remove 4 screws (12 mm, silver) that secure the Motor Housing.
4. Slide the Motor Housing away from the Optional Tray Assembly.
