Service Parts Disassembly
Exit Guide

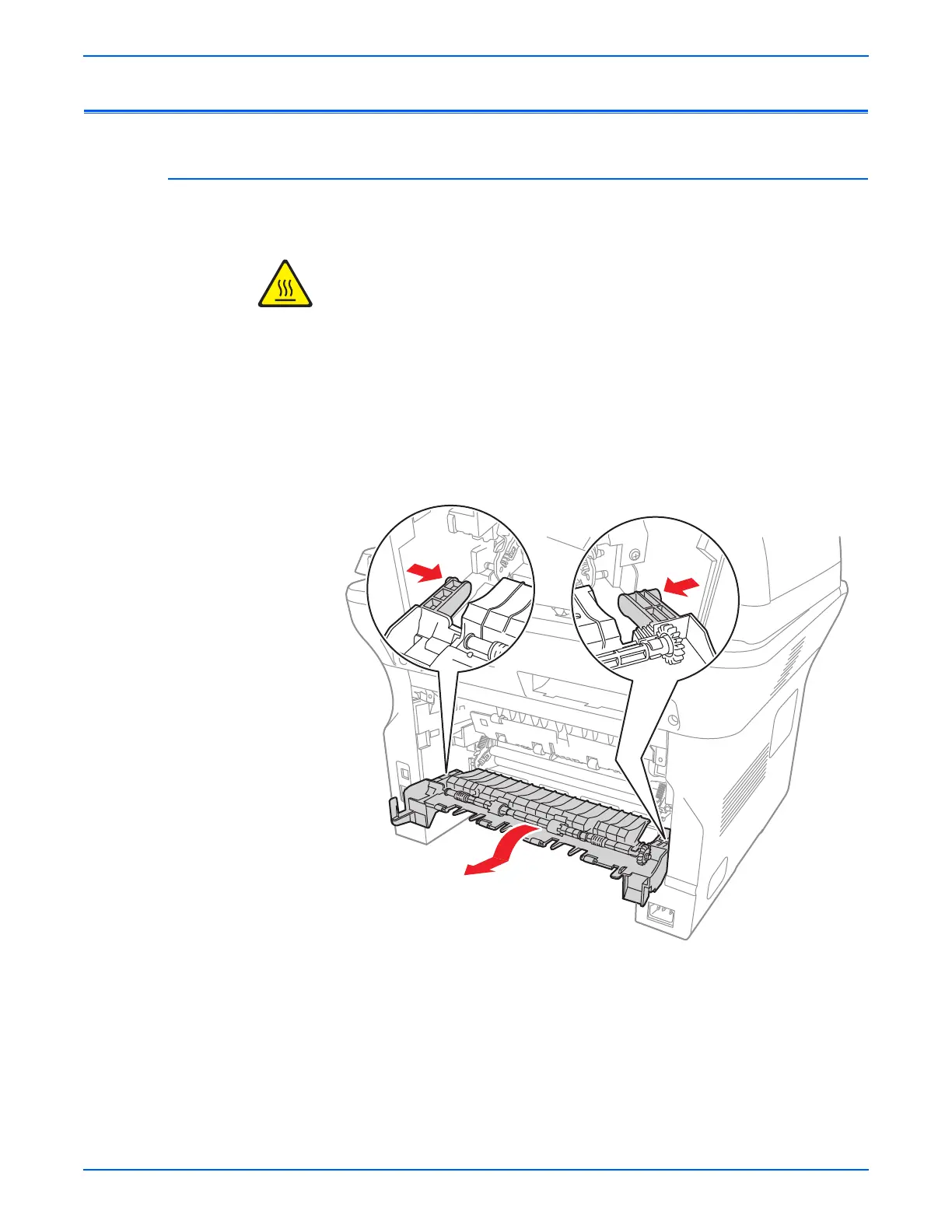

Rear Guide Unit
PL4.0.114
Allow the Fuser to cool before performing this procedure.
1. Remove the Duplex Unit (page 8-69).
2. Open the Rear Cover.
3. Open the Rear Guide Unit.
4. Push the Rear Guide Unit toward one side to release the notch from the
printer frame.
5. Slide the Rear Guide Unit out and remove the Guide Unit.
