WorkCentre 3210/3220 Multifunction Printer Service Manual 8-45
Service Parts Disassembly
ADF Idle Shaft/ ADF Feed Roller
PL6.2.3/ PL6.2.4
1. Remove the ADF (page 8-31).
2. Remove the ADF Platen Cover (page 8-42).

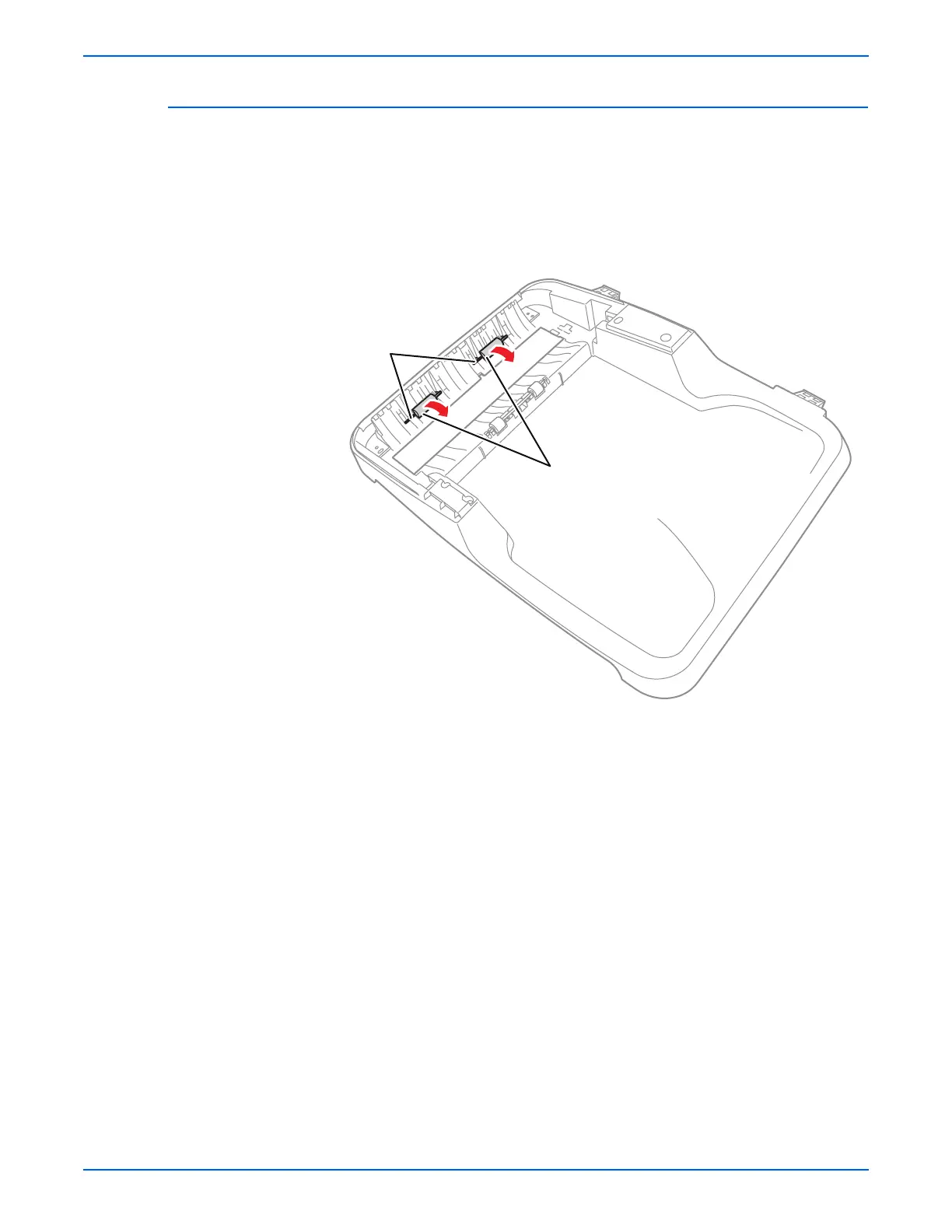

3. Pry the Shaft out from the ADF platen cover.
4. Remove the ADF Feed Roller.
Feed Rollers
Idle Shafts
s3210mfp-170
