Xerox WORKCENTRE 3210 Service Manual

3-10 WorkCentre 3210/3220 Multifunction Printer Service Manual
Error Messages and Codes
Paper Jam 1

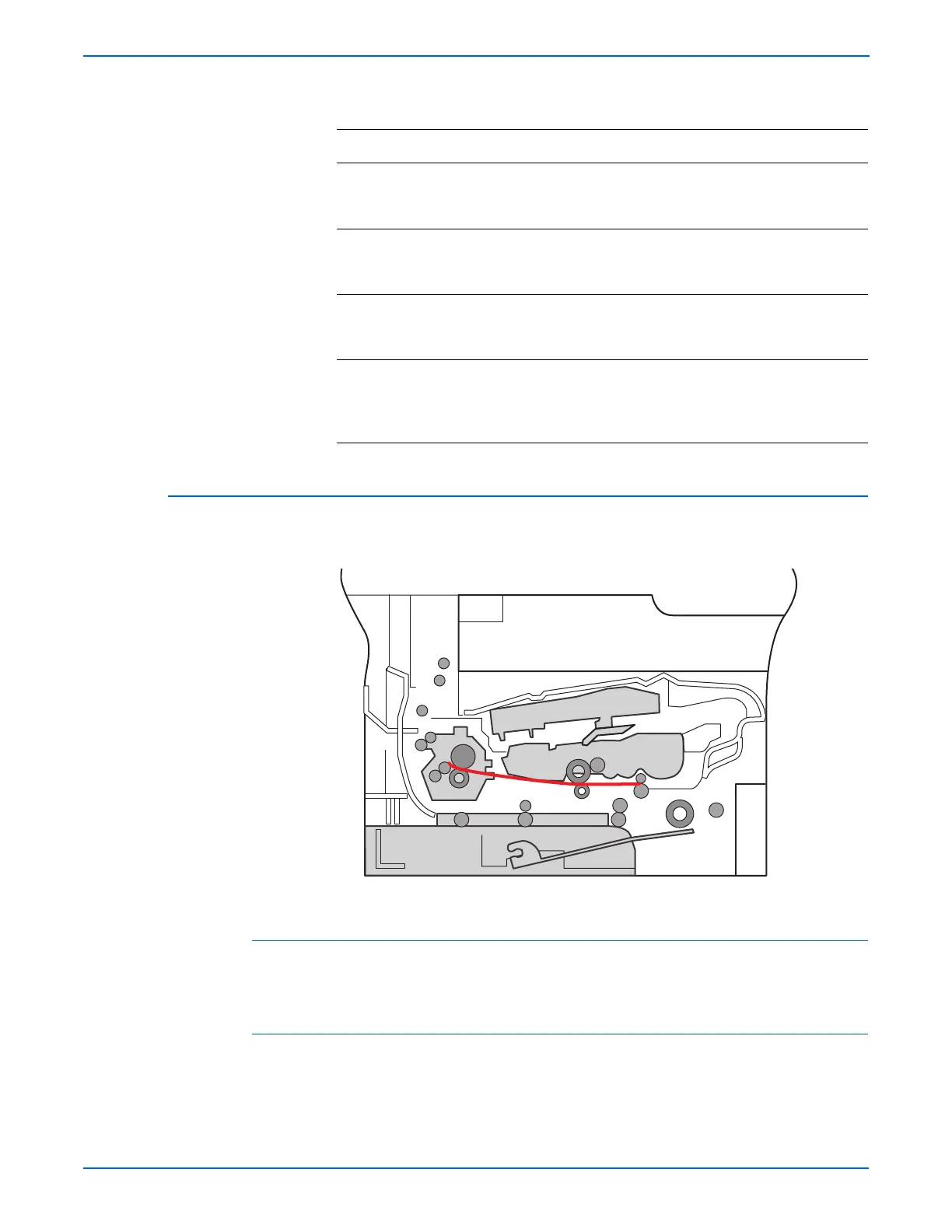

A jam located between the Feed and Exit Sensors inside the printer.
Applicable Error Message
■ Paper Jam 1
Initial Actions
■ Check the paper path for obstructions or debris.
■ Cycle printer power.
■ If the problem persists, refer to the following procedure.
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check the Pick-Up Solenoid for
damage or obstructions.
Is the Pick-Up Solenoid damaged?
Replace the Pick
Up Solenoid
(
page 8-79).
Go to step 2.
2 Check the Holder Pad.
Is the Holder Pad loose due bad
sealing of the side-pad?
Replace the
Holder Pad
(
page 8-11).
Go to step 3.
3 Check the Pick Up Roller for damage
or debris.
Is the Pick Up Roller damaged?
Replace the Pick
Up Roller
(
page 8-9).
Go to step 4.
4 Check the Feed Sensor for damage.
Is the Feed Sensor damaged?
Replace the
Feed Sensor
(
page 8-86).
Replace the
Main Controller
Board
(
page 8-100).
s3210mfp-239

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
