Xerox WORKCENTRE 3210 Service Manual

WorkCentre 3210/3220 Multifunction Printer Service Manual 8-5
Service Parts Disassembly
Fastener Types

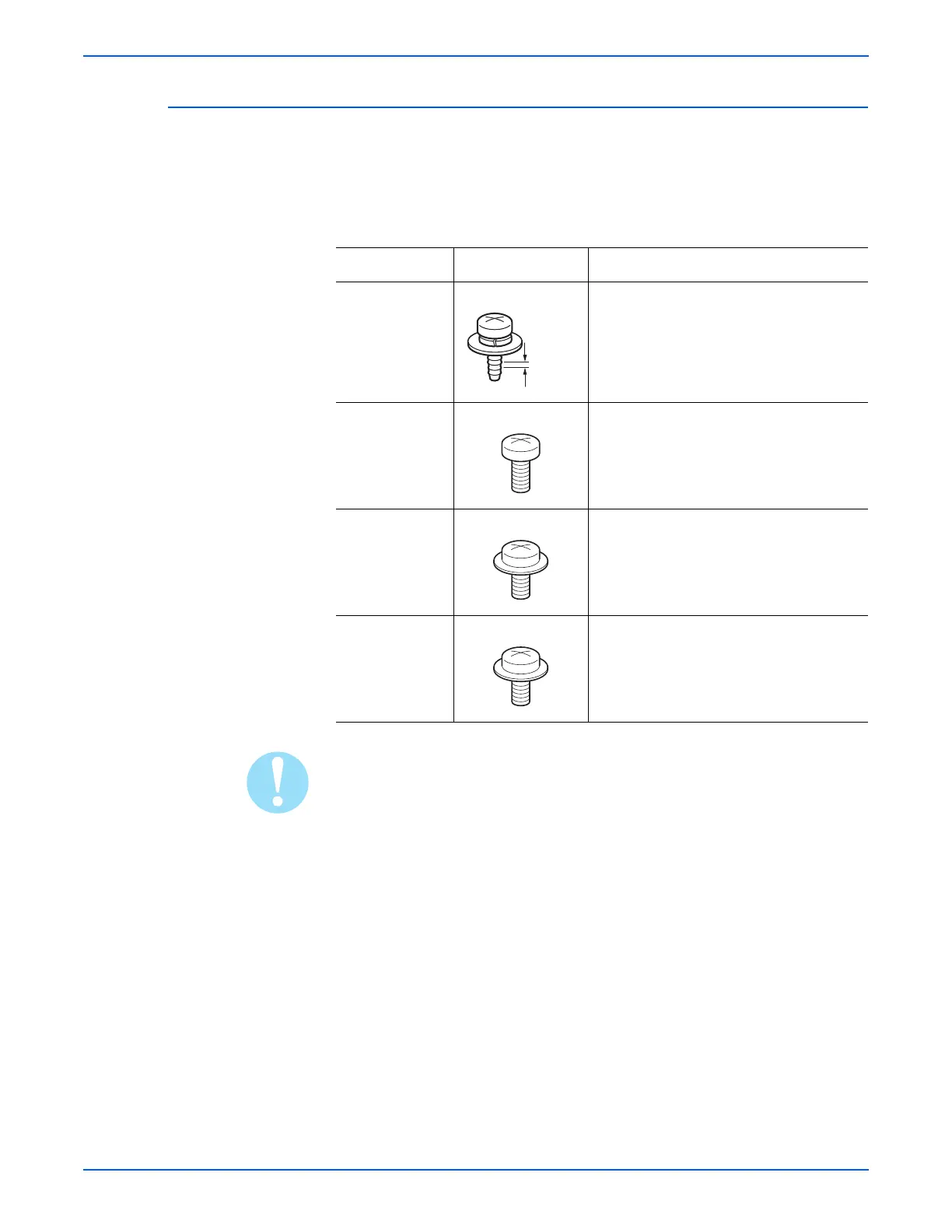

The following table lists the primary types of Posi-Drive screws used to
assemble the printer. The procedures provide dimensional specifications for
screws being removed.
Caution
Use care when installing self-tapping screws in plastic. To properly start the
screw in plastic, turn the screw counter-clockwise in the hole until you feel the
screw engage the threads, then tighten as usual. Always use the correct type
and size screw and properly align the screw to prevent damaging the tapped
holes. Do not use excessive force to remove or install either a screw or a
printer part.
Posi-Drive Screw Types used in the Printer
Type Shape Characteristics
Sheet Metal with
flange, gold
1. Gold colored.
2.Includes a round washer.
3.Screw has a flange.
4.Diameter is uniform.
Sheet Metal,
silver
1.Silver colored.
2.Diameter is uniform.
Sheet Metal with
flange, silver
1.Silver colored.
2.Screw has a flange.
3.Diameter is uniform.
Sheet Metal with
flange, black
1.Black colored.
2.Screw has a flange.
3.Diameter is uniform.
Coarse

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
