WorkCentre 3210/3220 Multifunction Printer Service Manual 8-73
Service Parts Disassembly
Feed Roller (Registration Roller)
PL4.0.20
1. Remove the Middle Cover (page 8-65).
2. Remove the Registration Clutch (page 8-71).
3. Remove the exit idle gear and the feed gear.
4. Remove the Pick Up Solenoid (page 8-79).
5. Remove the HVPS (page 8-101).
6. Remove the Power Supply (page 8-104).
7. Remove the Power Supply Shield (page 8-113).

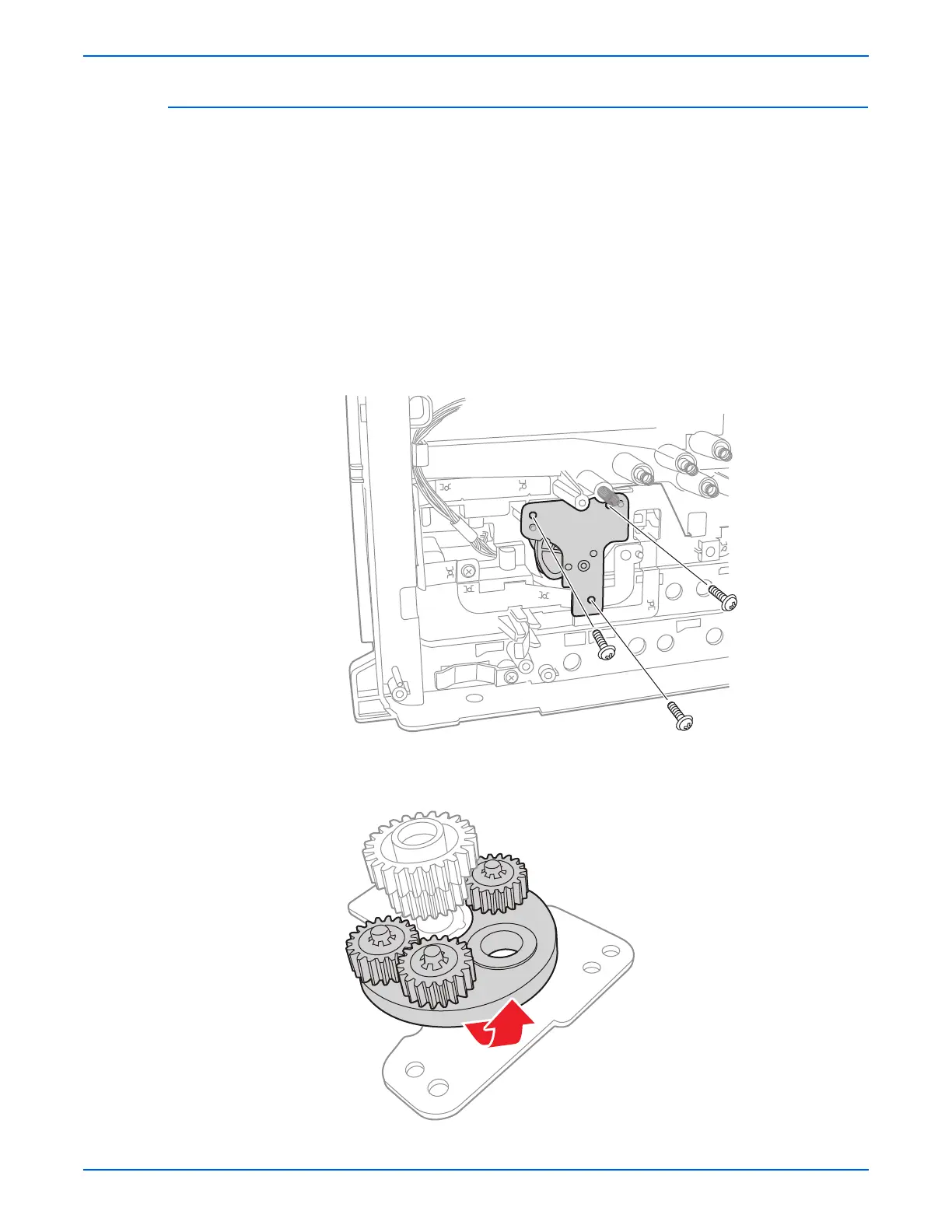

8. Remove 3 screws that secure the swing bracket.
9. Remove the swing bracket.
10. Remove the swing collar, the duplex gear, and the swing unit.
1
3
2
s3210mfp-040
s3210mfp-041

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
