Xerox WORKCENTRE 3210 Service Manual

WorkCentre 3210/3220 Multifunction Printer Service Manual 2-13
Theory of Operation
Image Output Terminal

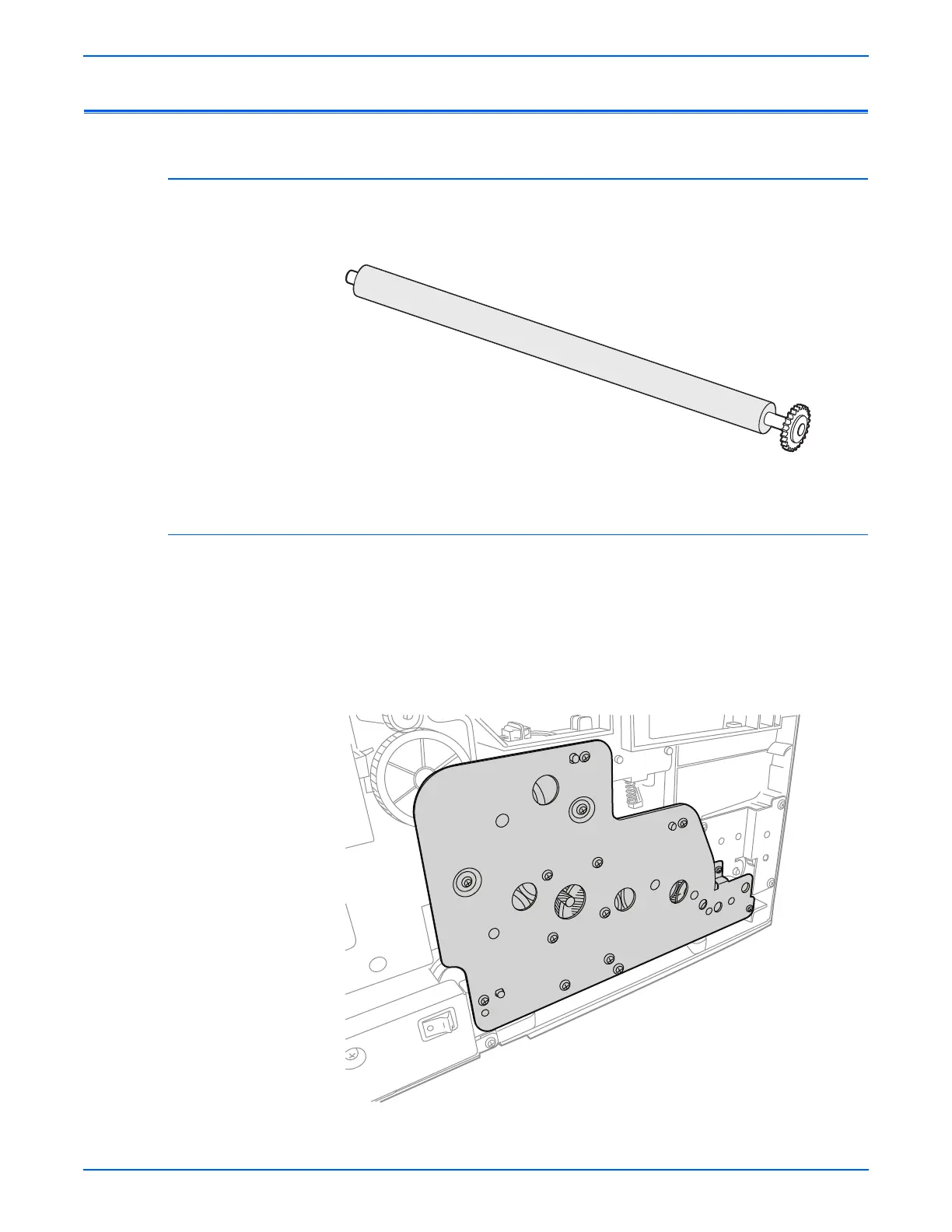

Transfer Roller
The Transfer Roller transfers toner on an Organic Photo Conductor (OPC) to
the paper.
Drive Unit Assembly
The Drive Unit Assembly receives power from the Main Controller Board, The
Main Motor provides drive energy to the paper feed, Print Cartridge, Fuser,
Pick Up Roller, Feed Rollers, and Duplex Unit. The Drive Unit Assembly
consists of the Main Motor and gear set mounted to a support plate.
■ Main Motor: DC 24V
■ Rated RPM: 2170 rpm
s3210mfp-133
1
5
3
7
6
2
4
s3210mfp-134

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
