Xerox WORKCENTRE 3210 Service Manual

8-104 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Power Supply
PL1.0.4

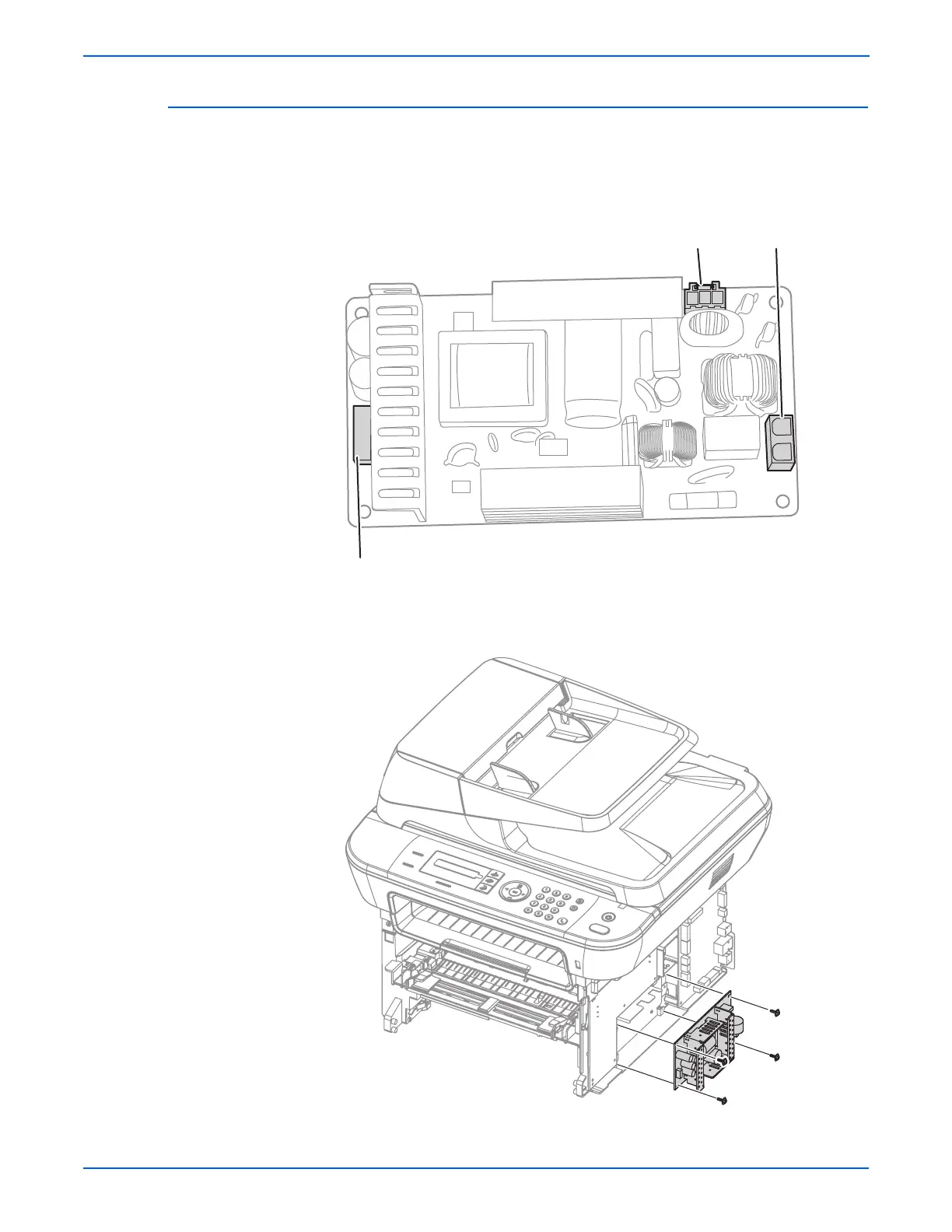

1. Remove the Right Cover (page 8-62).
2. Disconnect the 3 wiring harness connectors CON1, CON2, and CON4.
3. Remove 4 screws (12 mm, silver) that secure the Power Supply.
4. Remove the Power Supply.
CON2
CON4
s3210mfp-142
CON1
s3210mfp-187

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
