Xerox WORKCENTRE 3210 Service Manual

WorkCentre 3210/3220 Multifunction Printer Service Manual 8-51
Service Parts Disassembly
Timing Belt
PL6.3.1-10-7
1. Remove the Upper Platen (page 8-57).
2. Release the sensor and bracket from the scan unit.
3. Turn the sensor and bracket over with the Belt on the top side.

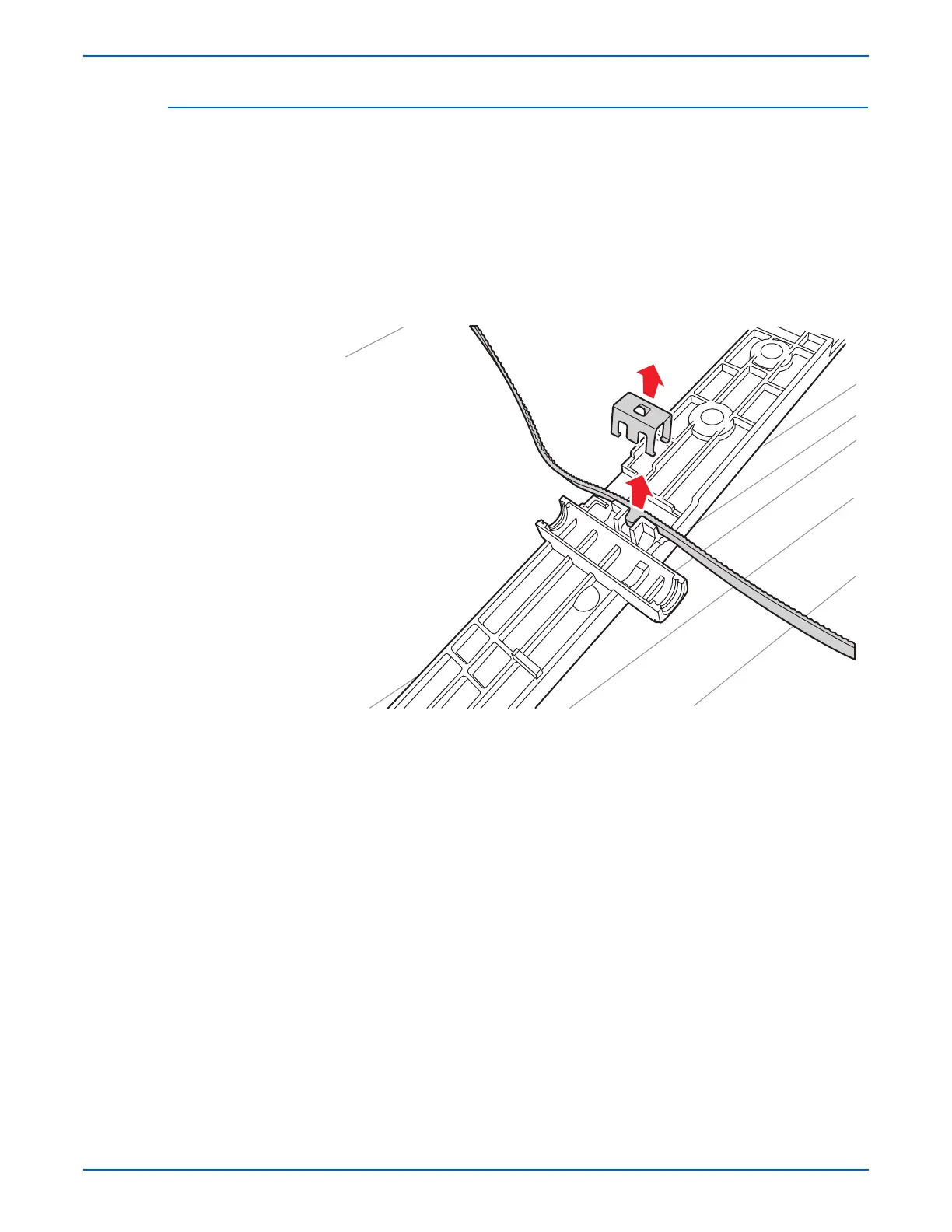

4. Release the clip that secures the Belt.
5. Remove the clip.
6. Remove the Belt from the bracket.
s3210mfp-179
