Xerox WORKCENTRE 3210 Service Manual

WorkCentre 3210/3220 Multifunction Printer Service Manual 5-33

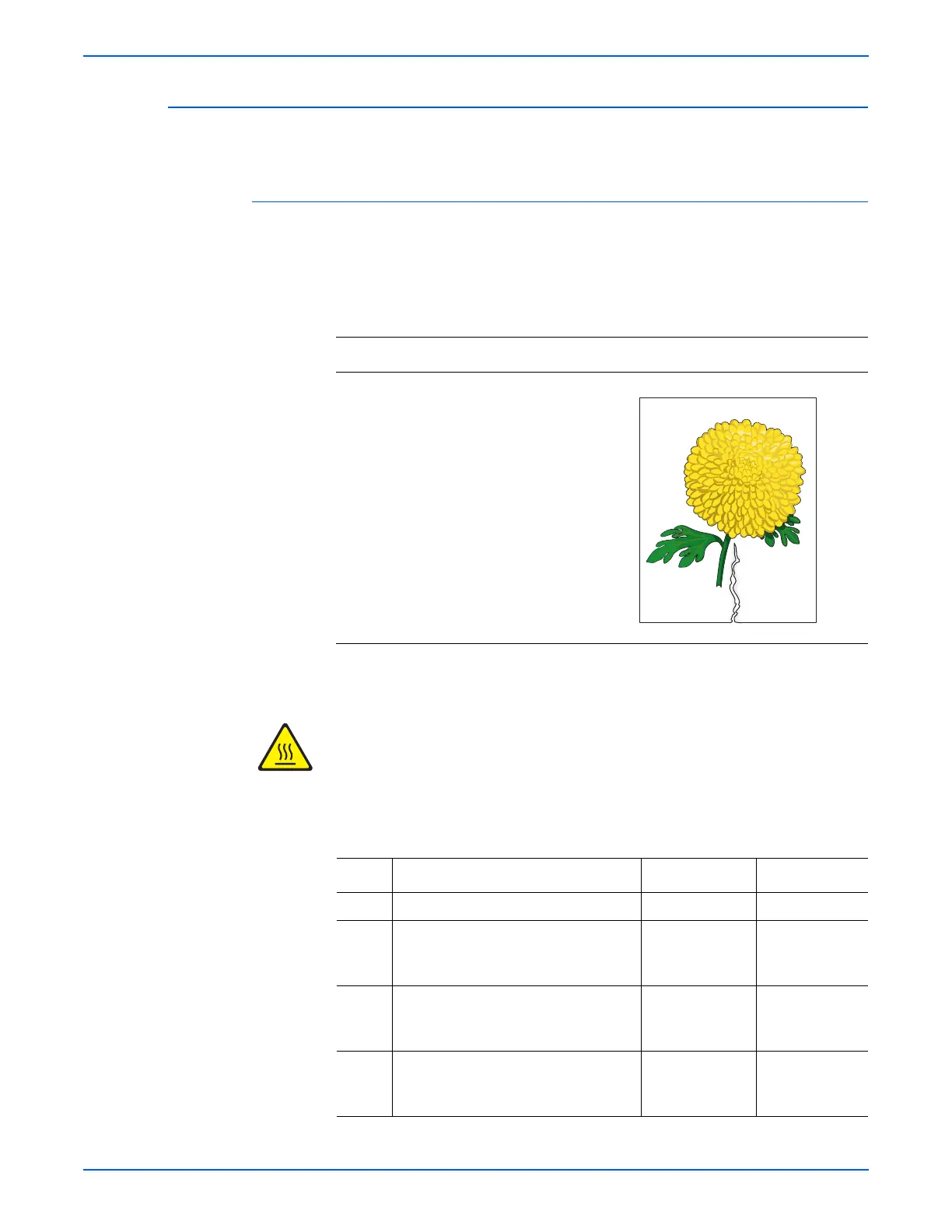

Print-Quality Troubleshooting
Media Damage
Media is damaged during transport in the ADF or print engine.
Initial Actions
■ Check the paper transfer path.
■ Ensure there are no debris on the transfer path.
Note
Steps 2-5 apply only to documents fed through the ADF.
Warning
Allow the Fuser to cool before starting the procedure.
Troubleshooting Reference Table
Applicable Parts Example Print
■ Transfer Roller, PL1.0.11
■ Registration Roller, PL4.0.20
■ Pick Up Roller, PL4.0.26
■ Exit Rollers, PL4.0.54
■ Exit Roller, PL4.0.59
■ ADF Scan Assembly, PL11.1.1
■ ADF Feed Roller, PL6.1.6
■ Holder Pad, PL7.0.14
■ Fuser, PL8.0.0
■ Duplex Unit, PL9.0.0
■ Tray 2 Pick Up Roller, PL10.0.10
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Does the error occur when printing? Go to step 6. Go to step 2.
2 Check the error.
Does the document meet ADF feed
specifications?
Go to step 3. Change the
media or use
the platen.
3 Check the side guide setting. Reset the
side guide setting to fit the sheet.
Does the document feed correctly?
Complete. Go to step 4.
4 Replace the ADF Feed Roller and
Holder Pad (8-110).
Does the document feed correctly?
Complete. Go to step 5.
Damaged Print Media
