WorkCentre 3210/3220 Multifunction Printer Service Manual 8-119
Service Parts Disassembly

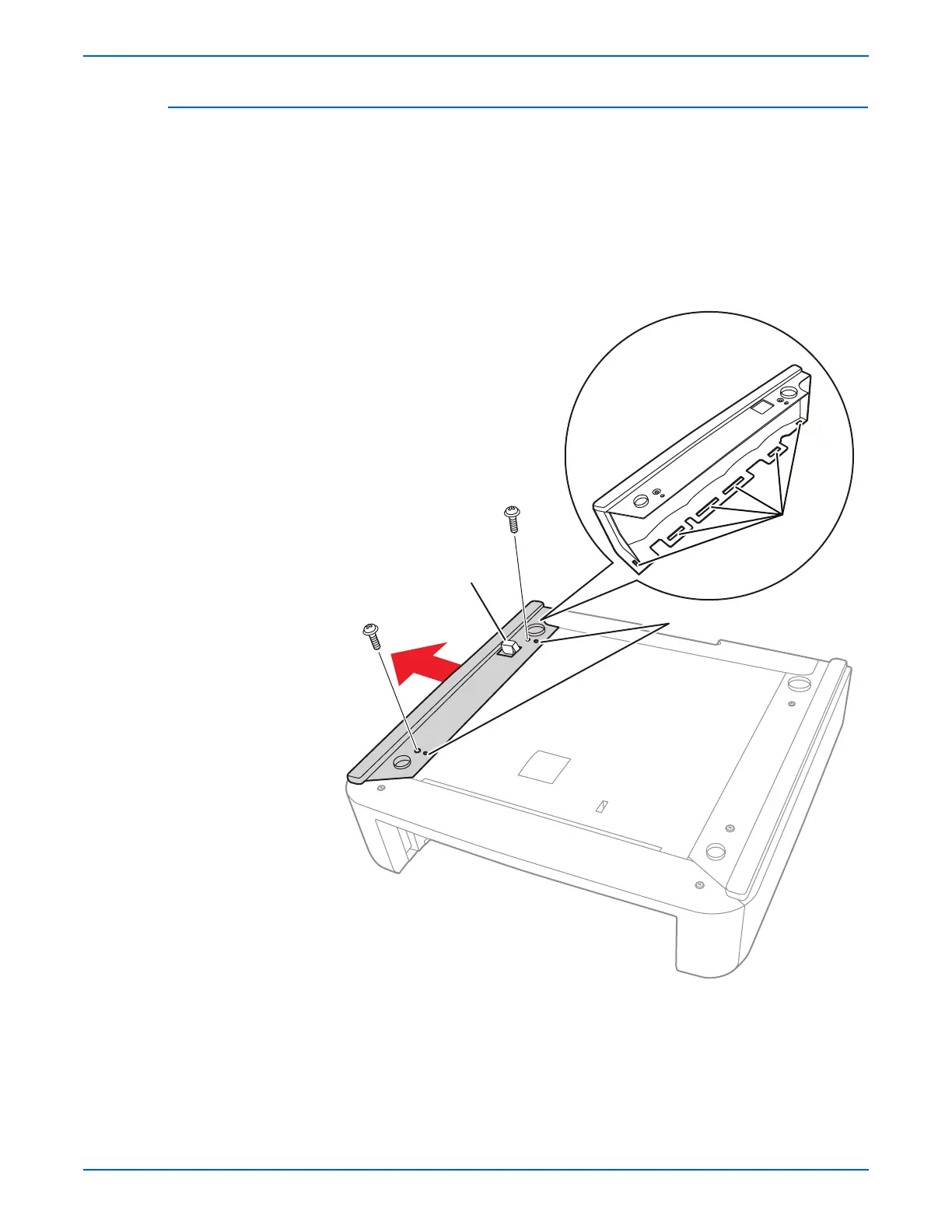

Left Cover
PL10.0.4
1. Remove the Optional Tray Assembly (page 8-117).
2. Remove 2 screws (12 mm, silver) that secure the Left Cover.
3. From the top side of the sheet feeder, pry the Left Cover to release the
Cover from the 2 notches.
4. While pressing on the ground, slide the Left Cover out and remove the
Left Cover.
s3210mfp-192
Bosses
Ground
Latches
To Next Page
