Xerox WORKCENTRE 3210 Service Manual

8-100 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Electrical
Main Controller Board
PL1.0.2
Note
The Main Controller Board cannot be interchanged between the
WorkCentre 3210 and WorkCentre 3220.

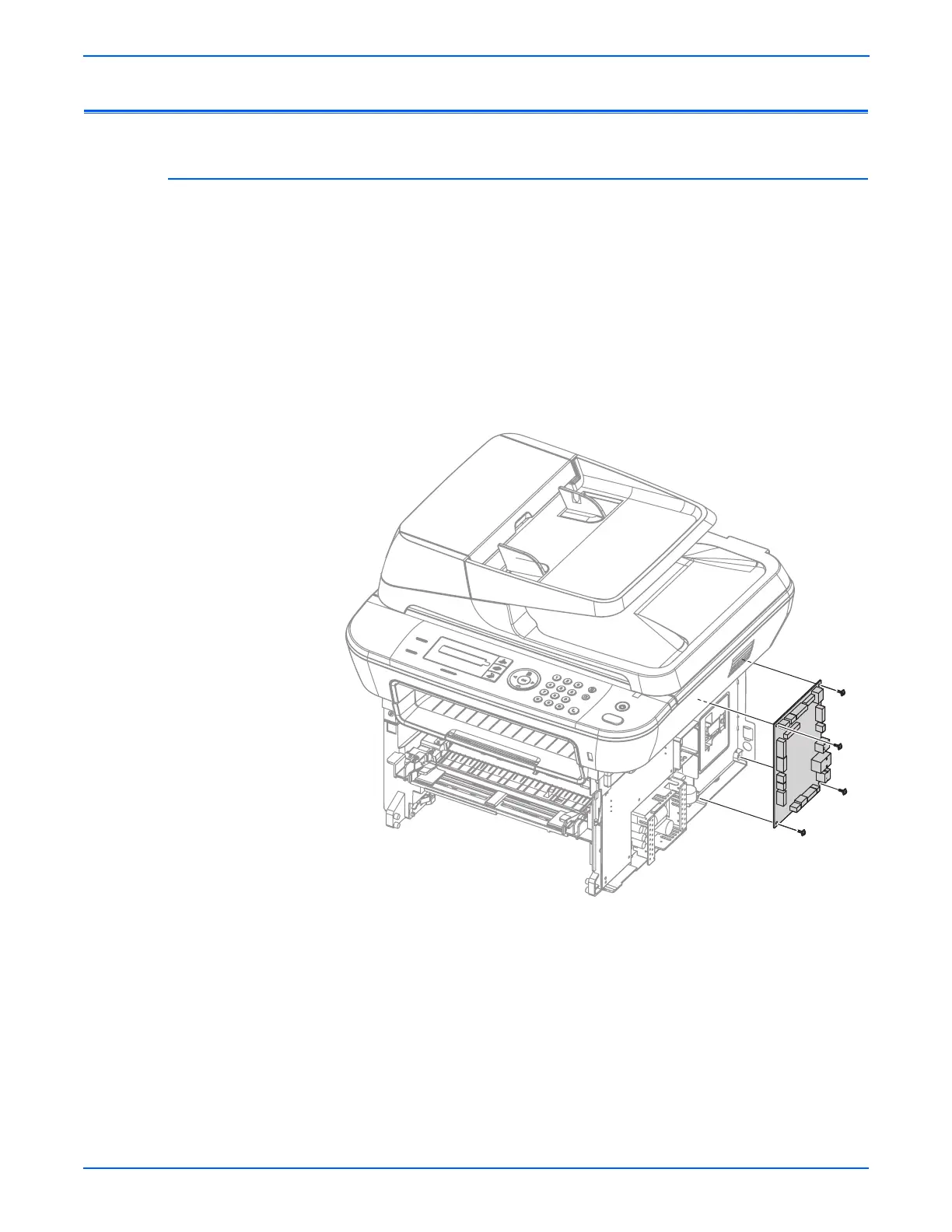

1. Remove the Right Cover (page 8-62).
2. Disconnect all the wiring harness connectors.
3. Remove 4 screws that secure the Main Controller PBA.
4. Remove the Main Controller PBA.
Replacement Note
Be sure to transfer the memory DIMM from the old Main Controller
Board to the new PBA.
When installing the Main Controller Board, use pliers to guide the
USB cable into the Main Controller Board.
s3210mfp-059

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
