Service Parts Disassembly
ADF Feeder Assembly
PL6.1.6
1. Open the ADF cover.
2. Turn the bushing upward to release the ADF Feeder Assembly from the
Upper ADF.
3. Lift and slide the ADF Feeder Assembly toward the right side.
4. Remove the ADF Feeder Assembly.

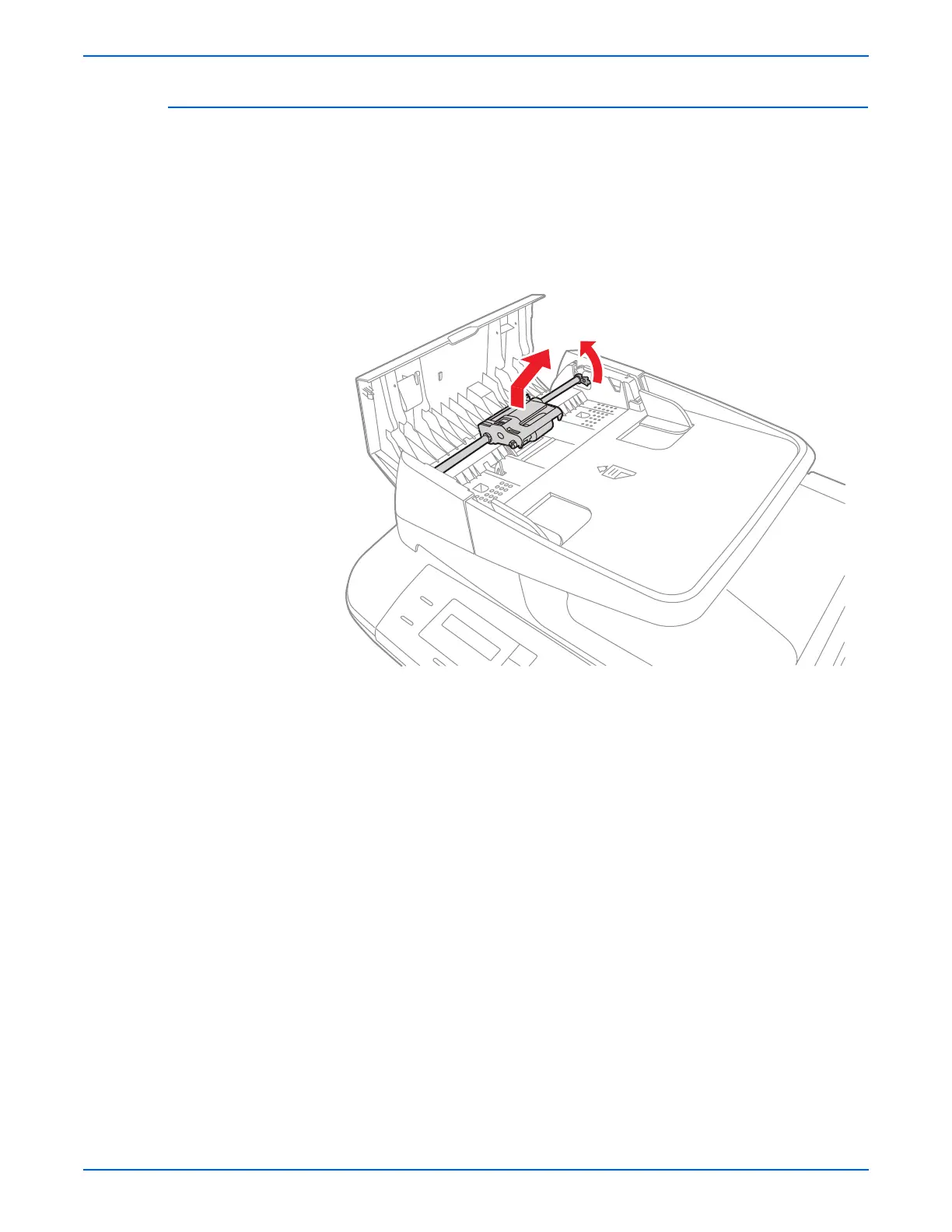

s3210mfp-146
2
1
