WorkCentre 3210/3220 Multifunction Printer Service Manual 8-71
Service Parts Disassembly

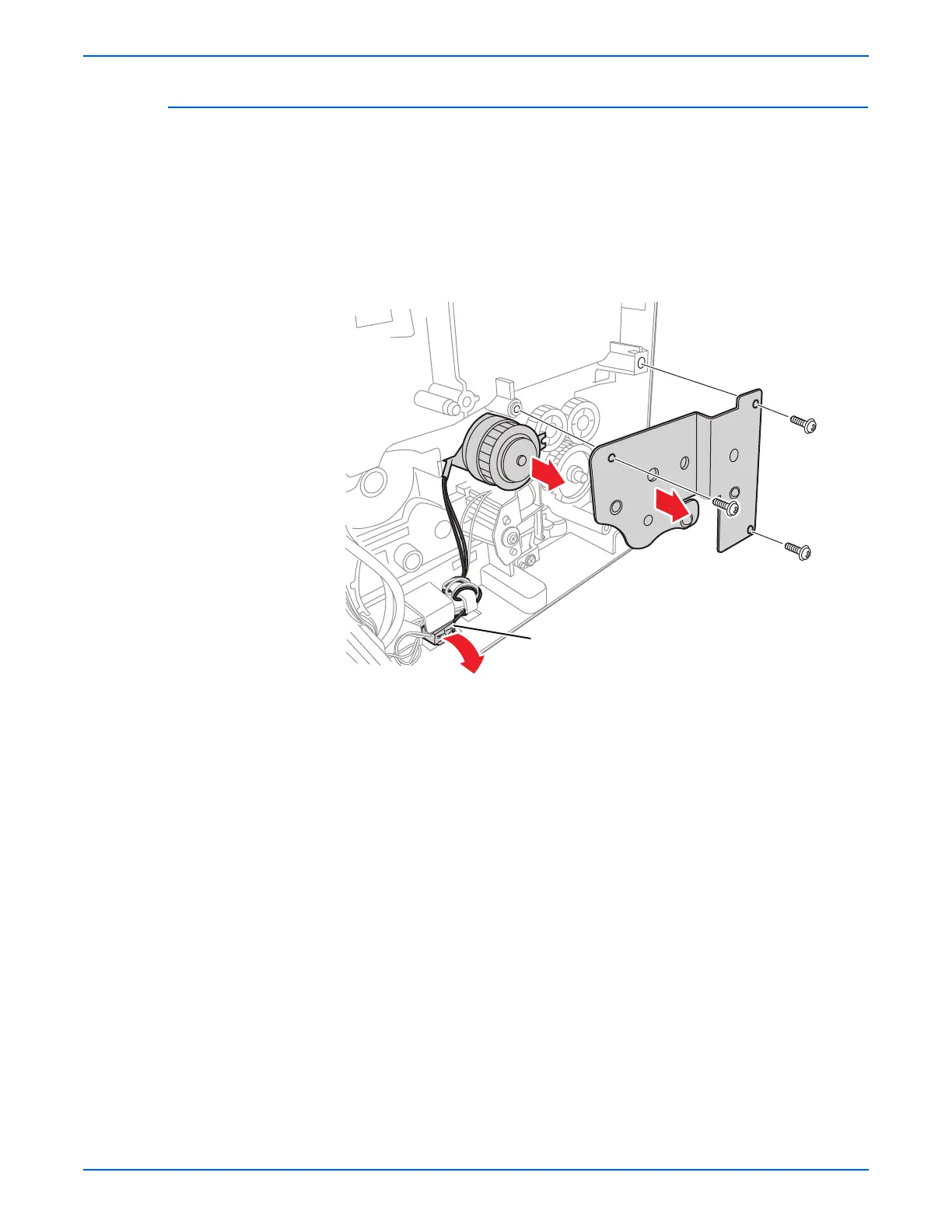

Registration Clutch
PL4.0.18
1. Remove the Drive Unit Assembly (page 8-98).
2. Remove 3 screws (12 mm, silver) that secure the Feed Bracket.
3. Remove the feed bracket.
4. Disconnect the black and gray wiring harness connector CN32.
5. Remove the Registration Clutch.
To Next Page
