Xerox WORKCENTRE 3210 Service Manual

WorkCentre 3210/3220 Multifunction Printer Service Manual 8-11
Service Parts Disassembly
Tray Feed Pad Assembly
PL7.0.14
1. Remove tray 1.
2. Remove paper from tray 1.
3. Press the Tray Feed Pad to the left and right to release the notches on the
left and right sides.
4. Apply pressure on the lift plate while pressing the white tab to release the
lift plate.

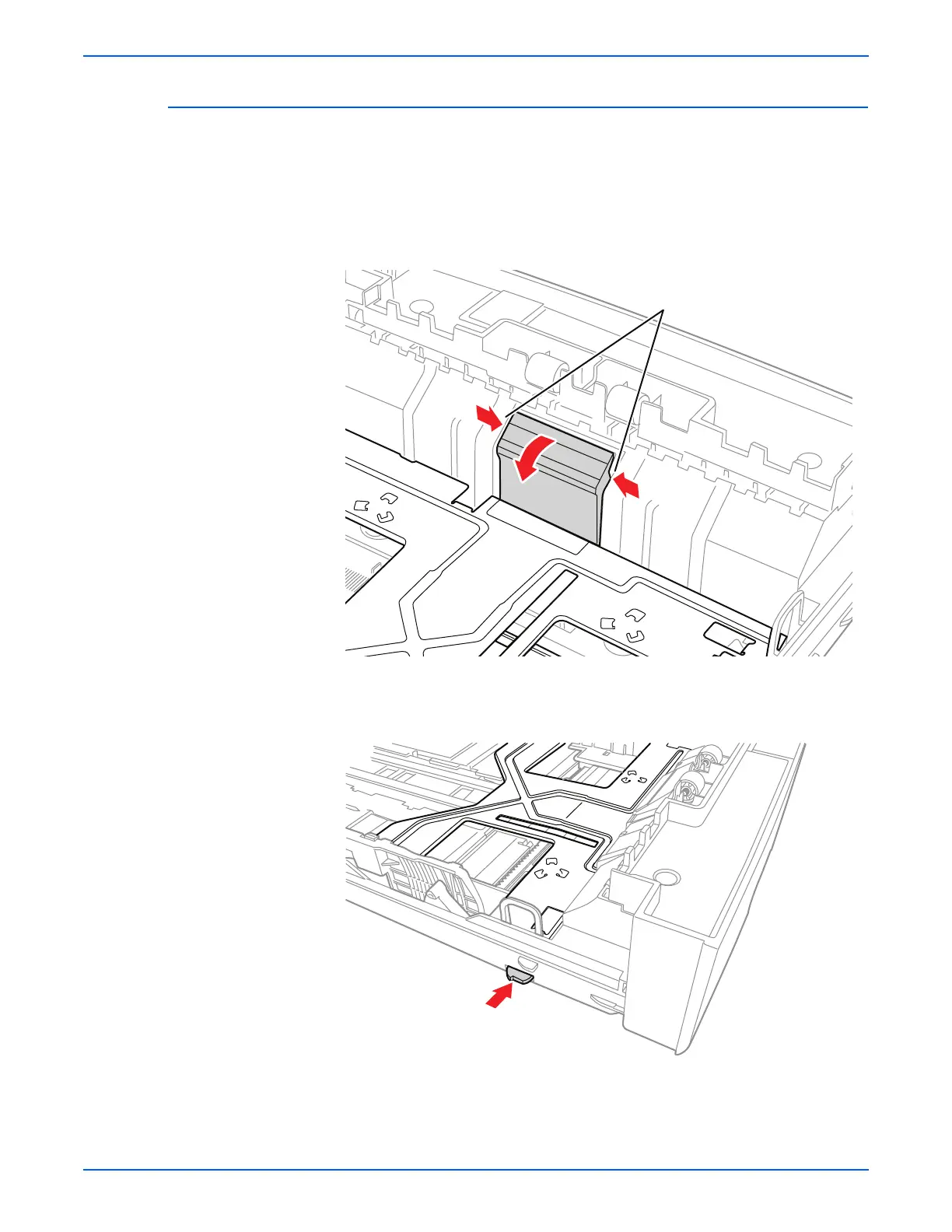

s3210mfp-016
Notches
s3210mfp-017

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
