1-4 WorkCentre 3210/3220 Multifunction Printer Service Manual
General Information
Parts of the Printer

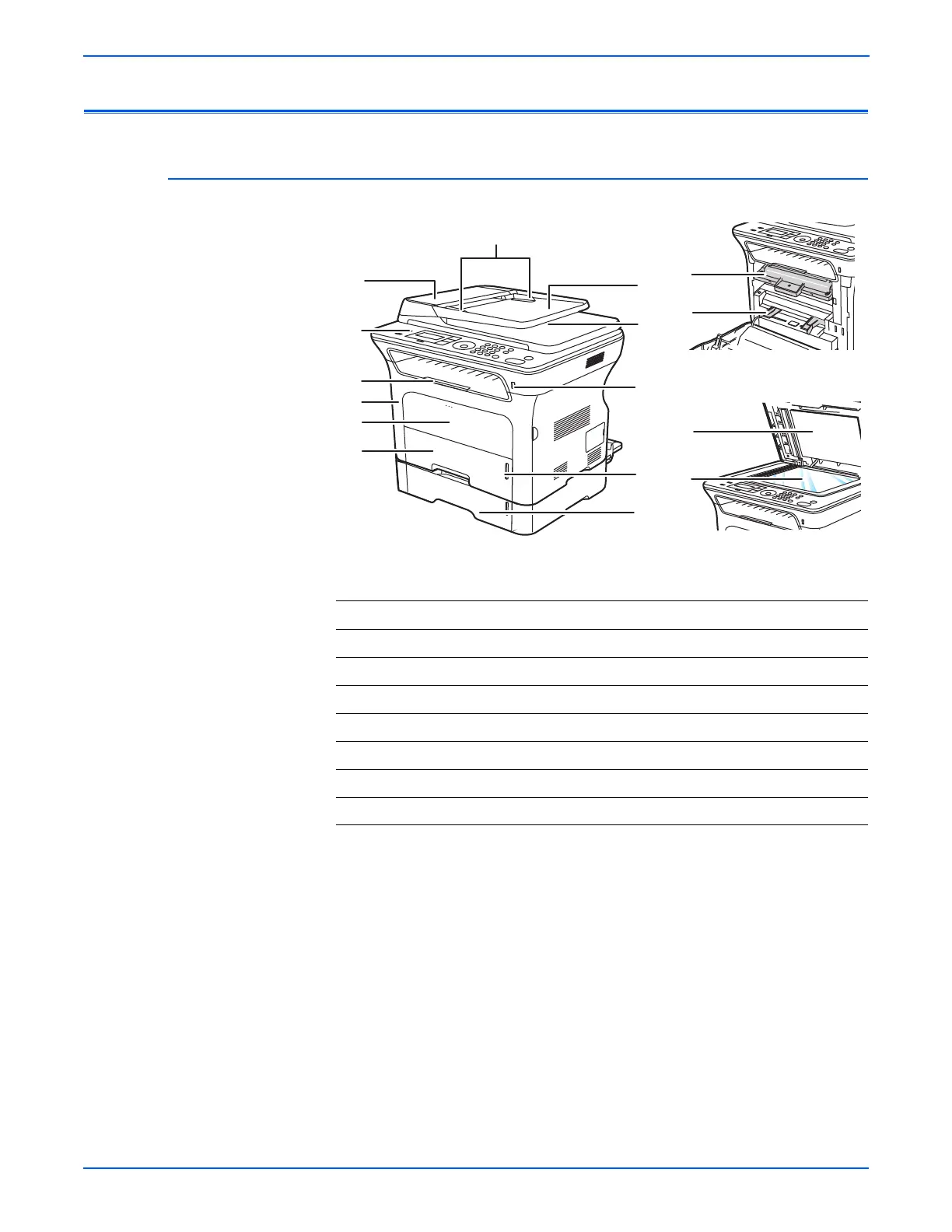

Front View
1. ADF Guides 9. Front Cover
2. ADF Input Tray 10. Output Support
3. ADF Output Tray 11. Control Panel
4. USB Port 12. ADF Cover
5. Paper Level Indicator 13. Print Cartridge
6. Optional Tray Assembly 14. Manual Feeder with Guides
7. Tray 1 15. Scanner Lid
8. Manual Tray 16. Document Glass
1
2
3
4
5
6
7
8
9
10
11
12
15
16
s3210mfp-081
13
14
