8-42 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Platen Cover
PL6.1.9
1. Remove the Upper ADF (page 8-40).
2. Remove the Lower ADF (page 8-36), steps 1-2.

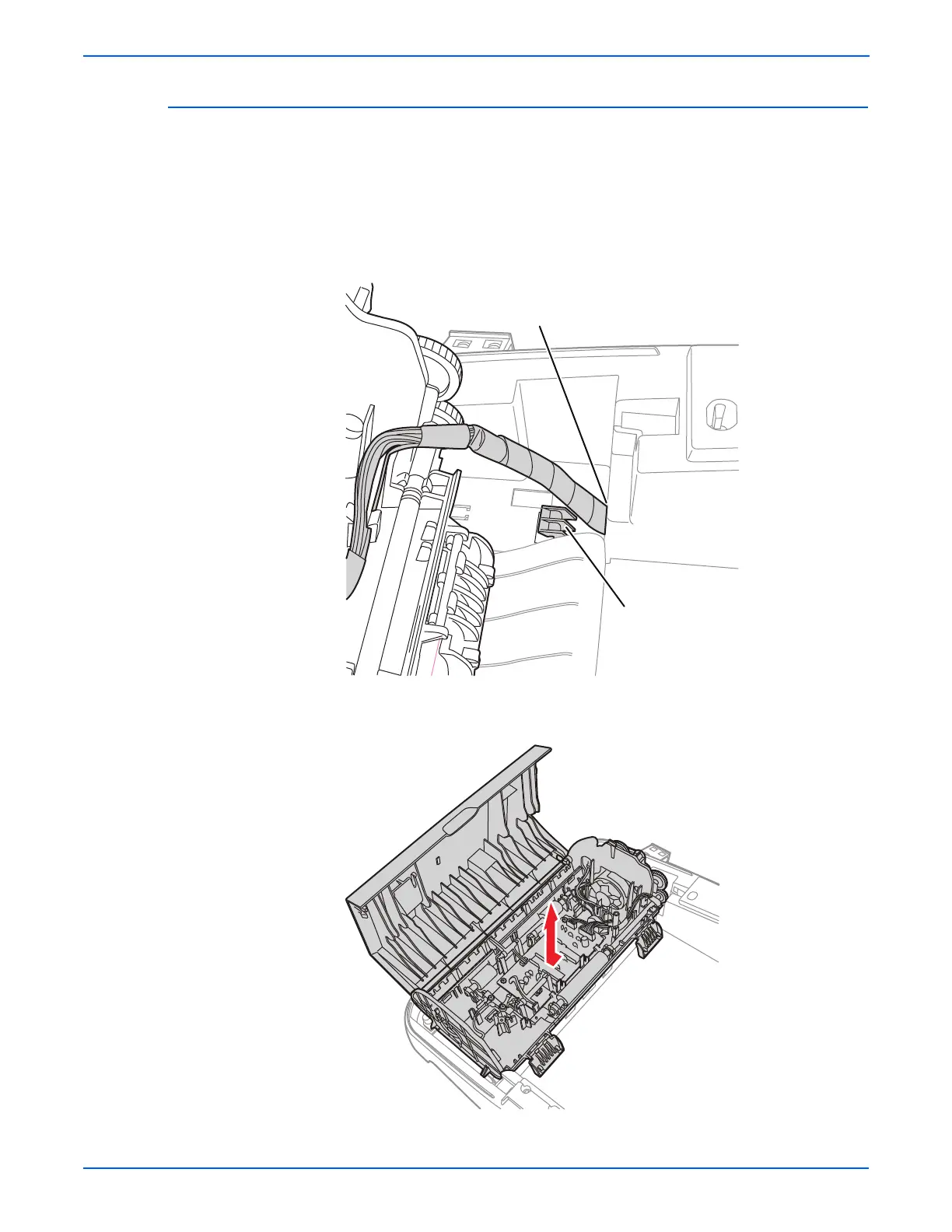

3. Push the lower ADF toward the left to release the lower ADF from the
hook and lift the lower ADF while routing the cable through the hole on the
Platen Cover.
4. Remove the lower ADF from the Platen Cover.
Hole
Hook
s3210mfp-163
s3210mfp-226
