2-2 WorkCentre 3210/3220 Multifunction Printer Service Manual
Theory of Operation
Operational Overview
The WorkCentre 3210/3220 is a monochrome multifunction printer that uses
Laser Unit (LSU) with an electrophotographic process. The printer system
consists of one print cartridge which creates the toner image.
System Overview
The WorkCentre 3210/3220 Multifunction Printer is divided into two main
components: the Image Input Terminal (IIT - ADF and Scanner) and the
Image Output Terminal (IOT - Print Engine).

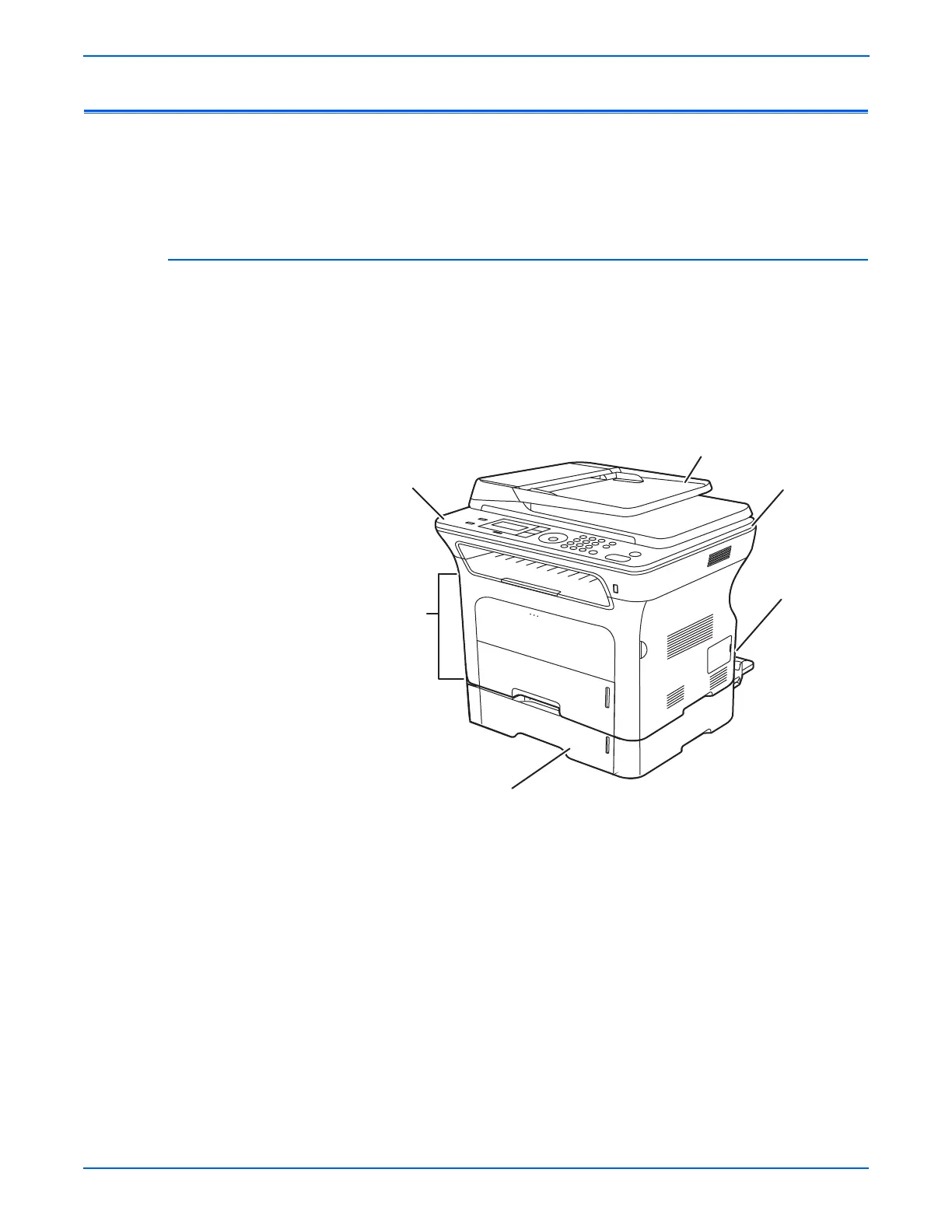

The WorkCentre 3210/3220 Multifunction Printer consists of the Automatic
Document Feeder (ADF) Assembly, Scanner Assembly, Control Panel, Print
Engine, Duplex Unit (3220 only), and Optional Tray Assembly.
s3210mfp-243
Control Panel
ADF Assembly
Scanner Assembly
Optional 250-Sheet Feeder
Duplex Unit
Print Engine

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
