8-80 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly

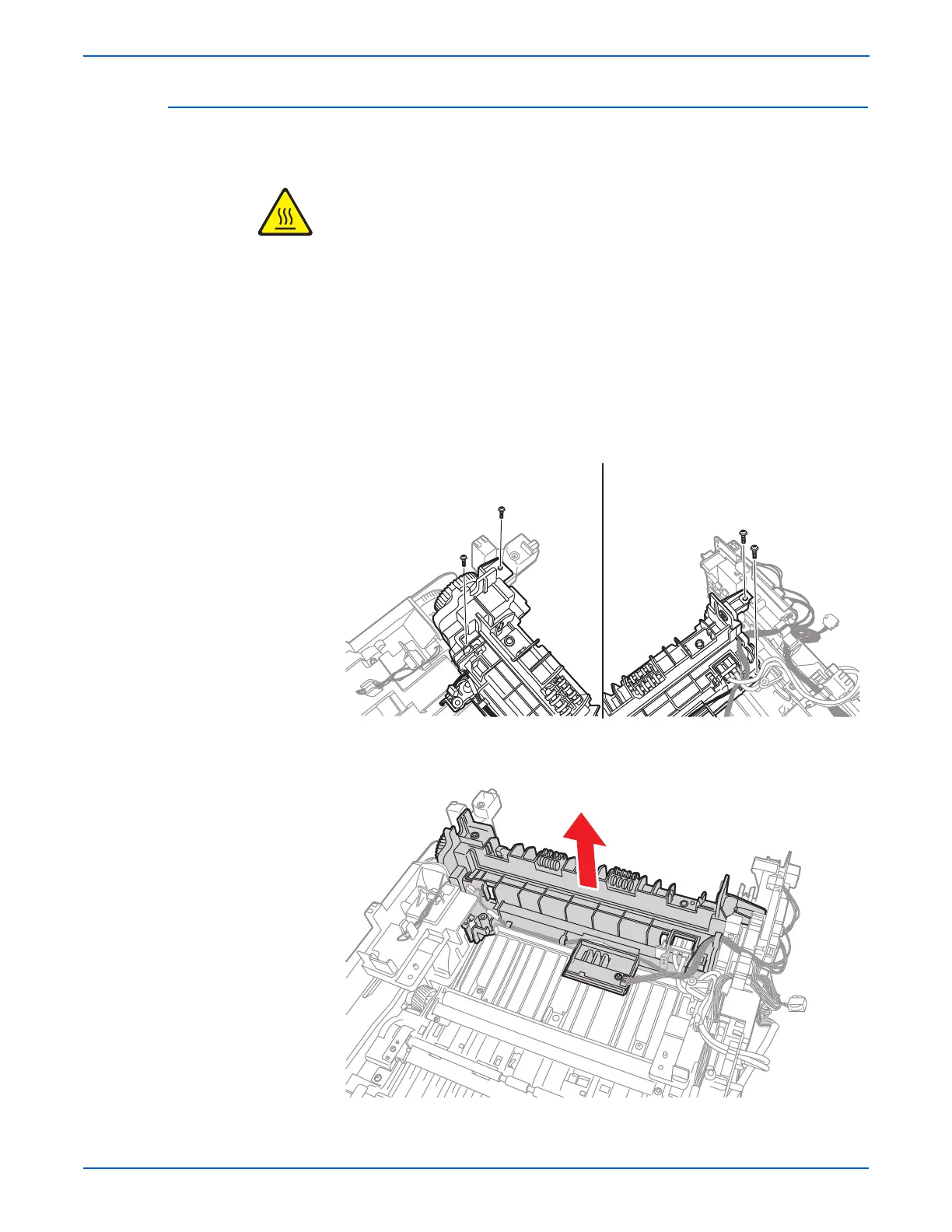

Upper Exit Frame
PL4.0.47
Allow the Fuser to cool before performing this procedure.
1. Remove the Fuser (page 8-13).
2. Remove the Main Controller Board (page 8-100).
3. Remove the Laser Unit (page 8-95).
4. Remove the Controller Shield (page 8-100).
5. Remove the CRUM Board (page 8-96).
5. Remove the Exit Roller (page 8-81).
6. Remove 4 screws (12 mm, silver) that secure the Upper Exit Frame.
7. Lift and remove the Upper Exit Frame.
Left Side Right Side
s3210mfp-224
To Next Page
