WorkCentre 3210/3220 Multifunction Printer Service Manual 2-3
Theory of Operation

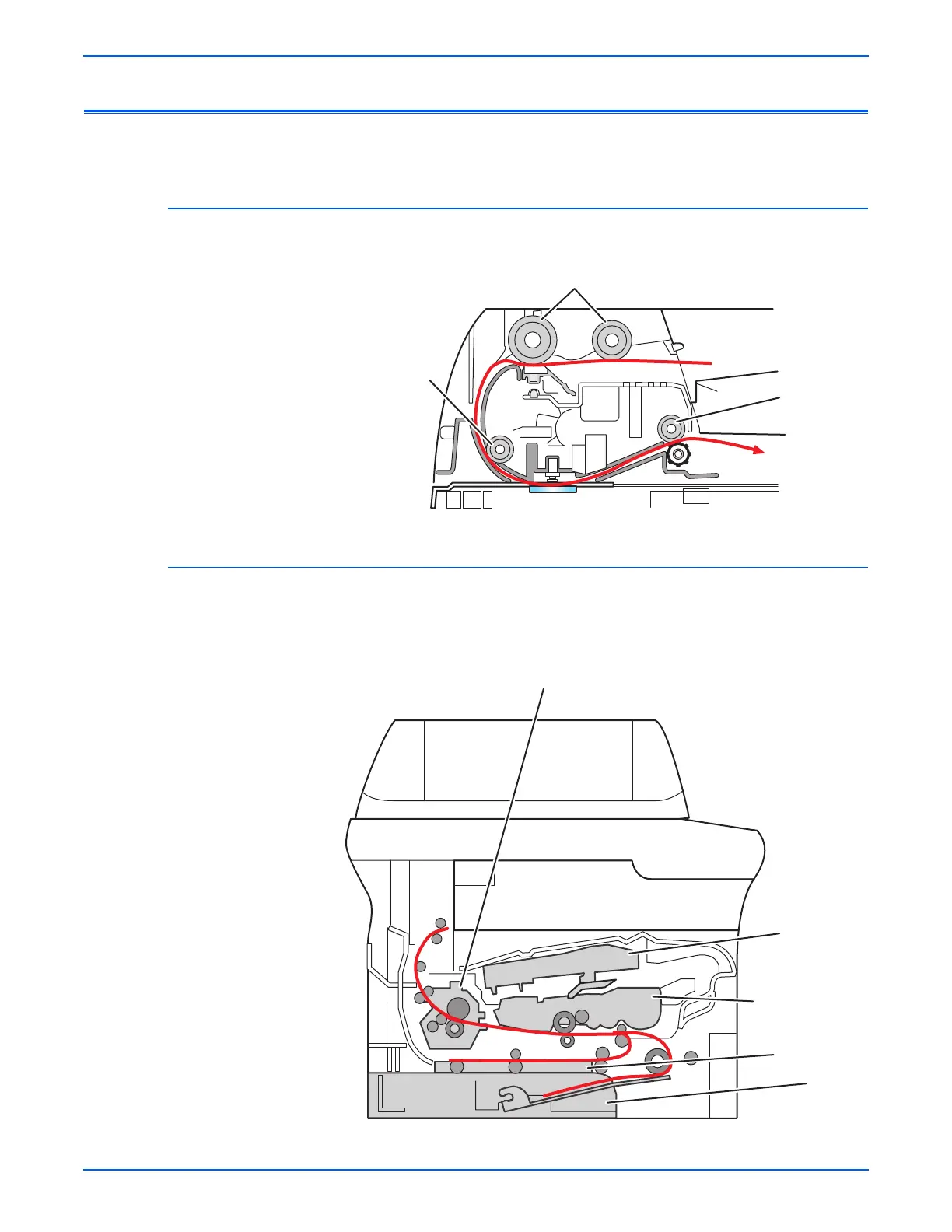

Paper Path
The following describes how media is transported through the printer.
ADF
Media is transported through the ADF by these components.
Printer
The media supplied from the Tray 1, or Tray 2, is transported through the
printer as shown in the illustrations below. Media fed from the manual feed
slot enters the media path at the registration roller.
ADF Feeder Assembly
ADF Feed Roller
Pinch Roller
s3210mfp-113
Laser Unit
Print Cartridge
Fuser
Duplex Unit
Tray 2
s3210mfp-112

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
