WorkCentre 3210/3220 Multifunction Printer Service Manual 8-15
Service Parts Disassembly

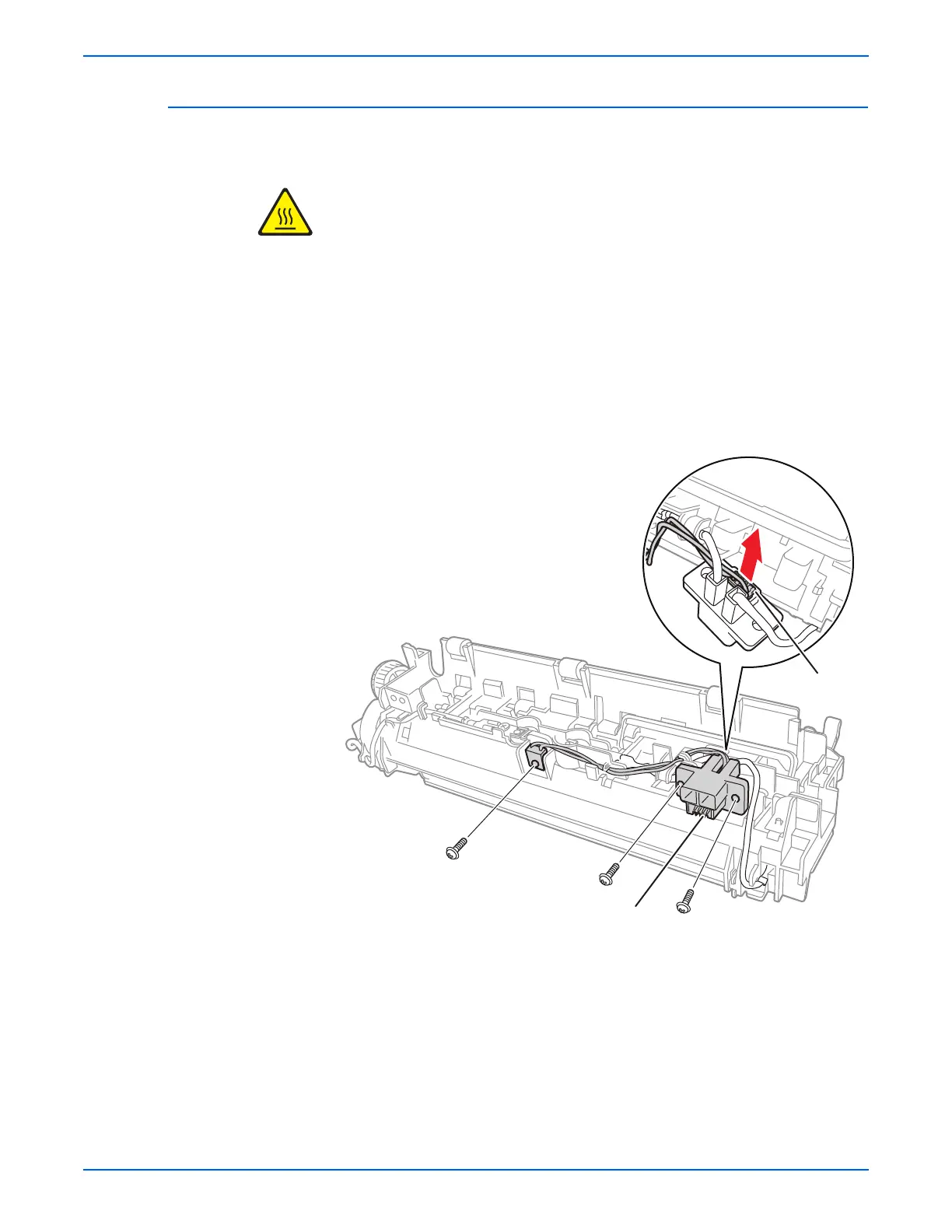

Thermistor
PL8.0.5
Allow the Fuser to cool before performing this procedure.
1. Remove the Fuser (page 8-13).
2. Remove 1 screw (12 mm, silver) that secures the Thermistor.
3. Remove 2 screws (12 mm. silver) that secure the junction block.
4. Release the wiring harness from the retainer.
5. Pull the junction block forward and disconnect the wiring harness
connector CN45.
6. Remove the Thermistor.
To Next Page
