8-78 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Feed Gear
PL4.0.35
1. Remove the Registration Clutch (page 8-71).

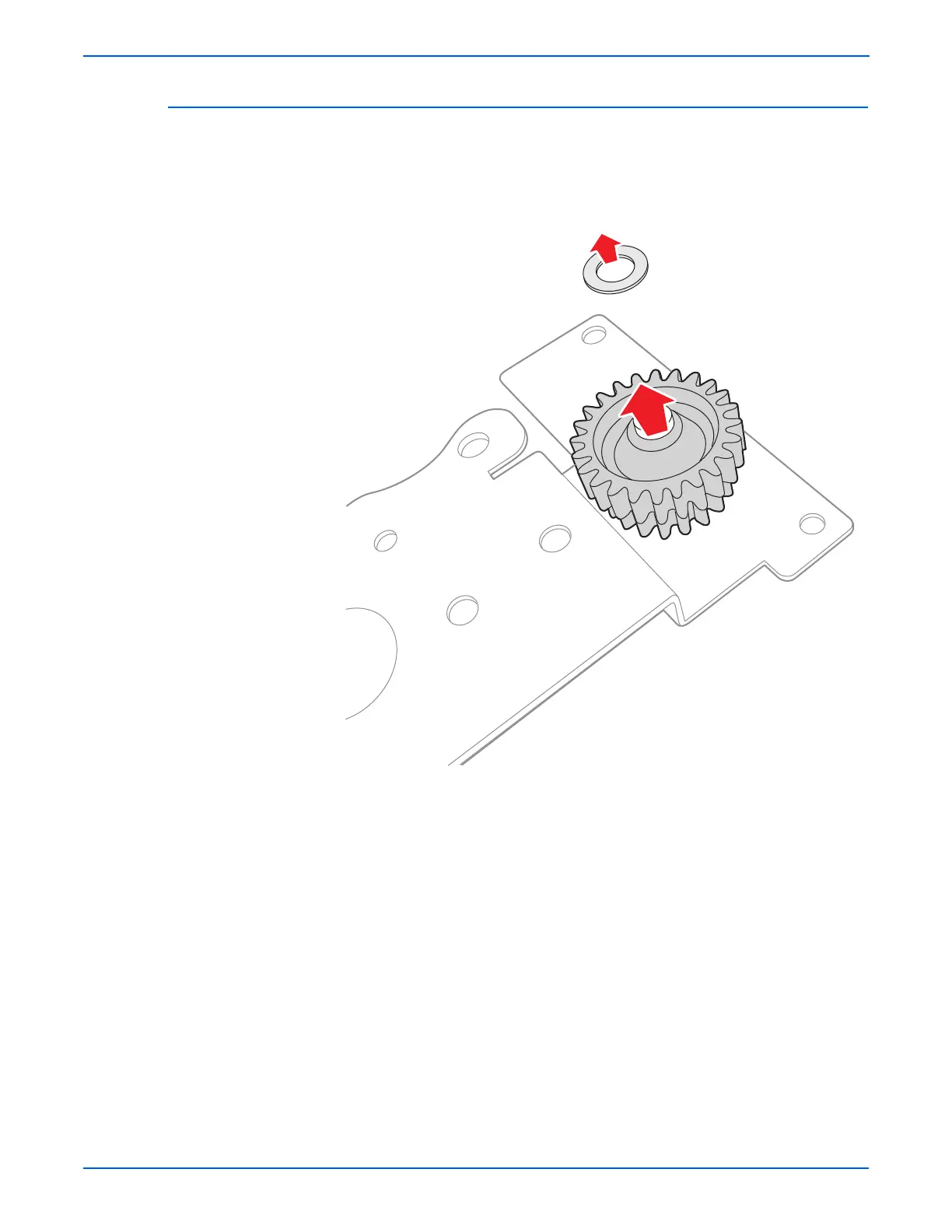

2. Remove the Retaining Ring and Feed Gear.
s3210mfp-217
