8-84 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Duplex Actuator
PL4.0.73
1. Remove Tray 1.
2. Remove the Print Cartridge (page 8-8).
3. Remove the Duplex Unit (page 8-69).
4. Place the printer on its right side.

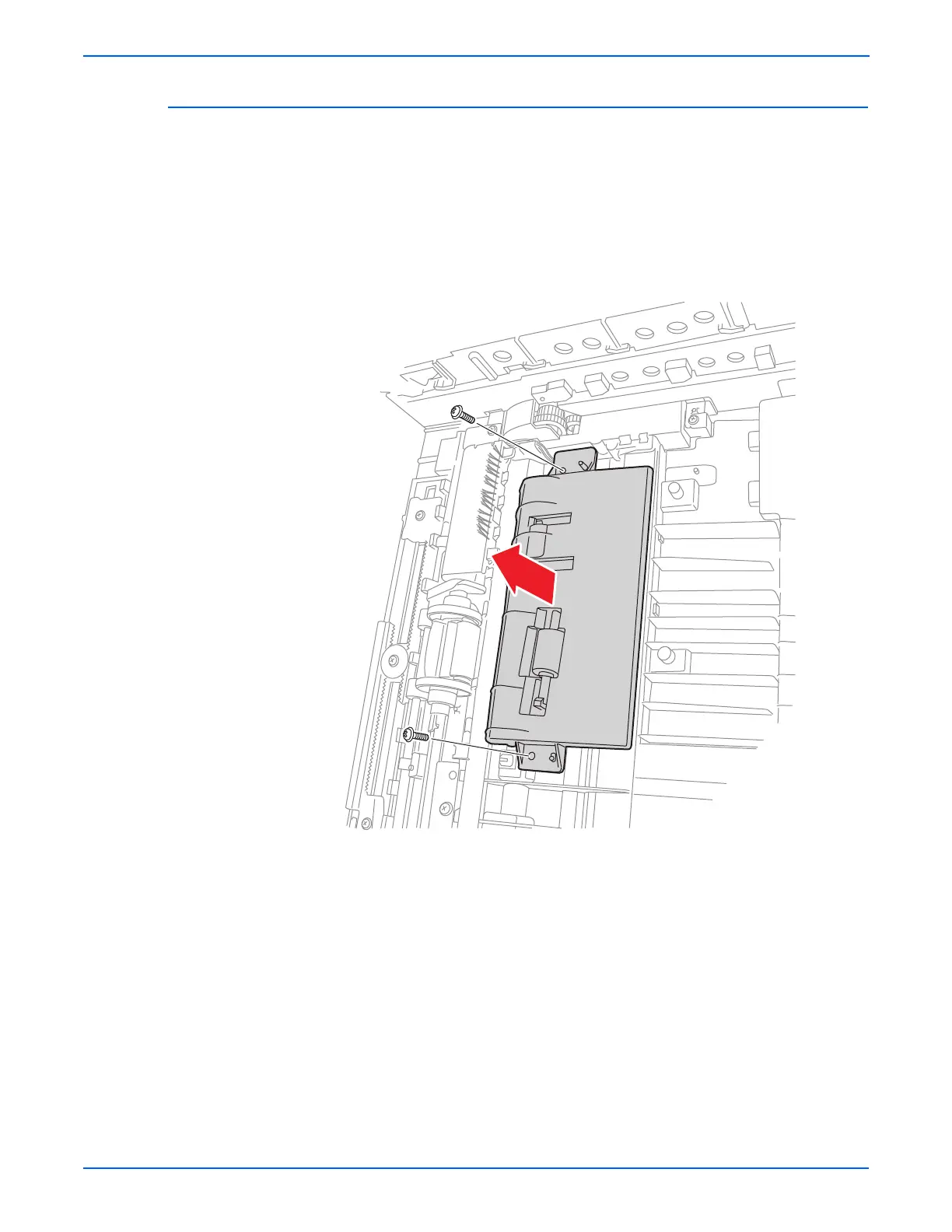

5. Remove 2 screws (12 mm, silver) that secure the duplex path frame.
To Next Page
