WorkCentre 3210/3220 Multifunction Printer Service Manual 8-13
Service Parts Disassembly
Fuser
PL8.0.0
Allow the Fuser to cool before performing this procedure.
1. Remove the Duplex Unit (page 8-69).
2. Remove the Rear Cover (page 8-61).
3. Remove the Rear Guide Unit (page 8-97).

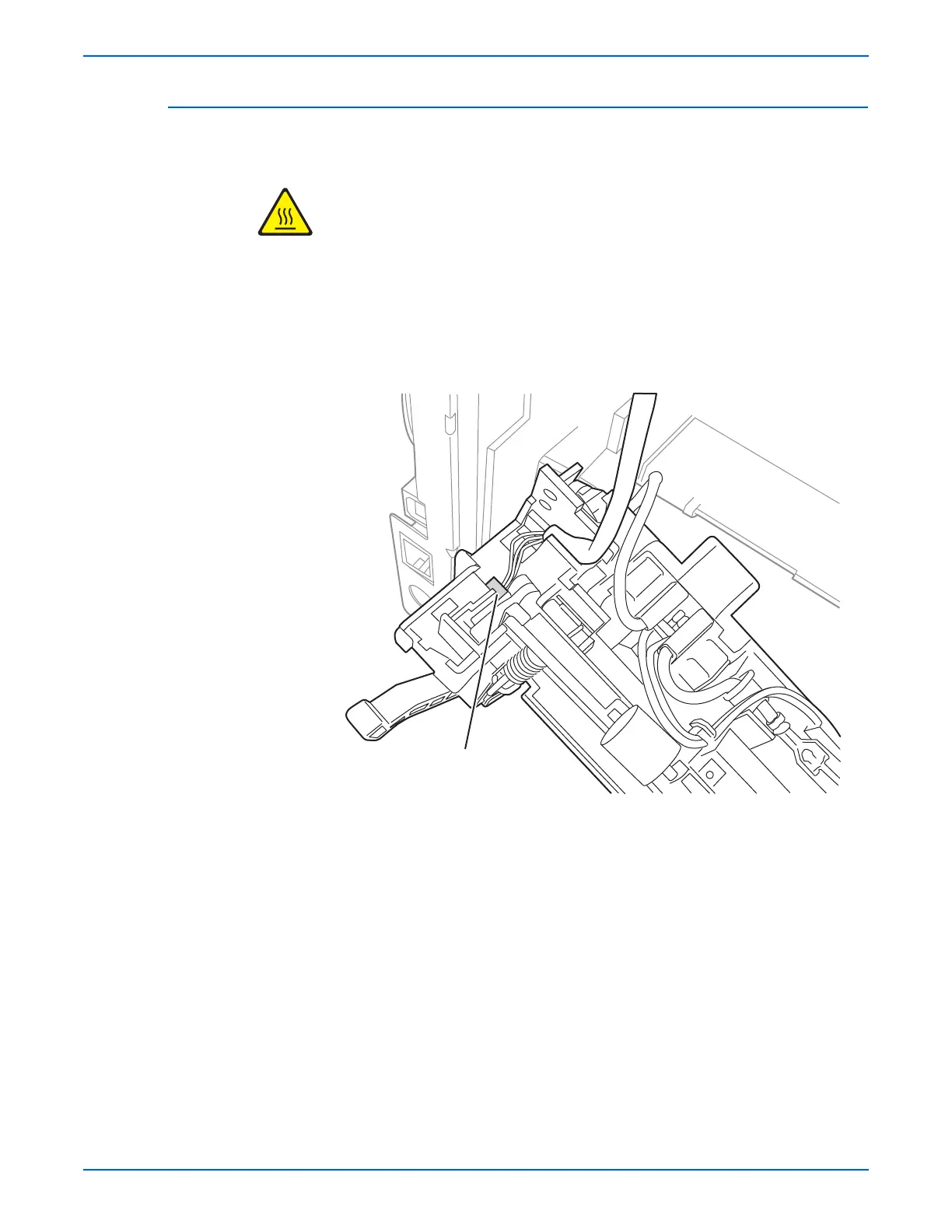

4. Disconnect the wiring harness connector CN53.
