8-92 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Exit Actuator
PL8.0.19
Allow the Fuser to cool before performing this procedure.
1. Remove tray 1.
2. Remove the Print Cartridge (page 8-8).
3. Remove the Front Cover (page 8-58).
4. Remove the Fuser (page 8-13).

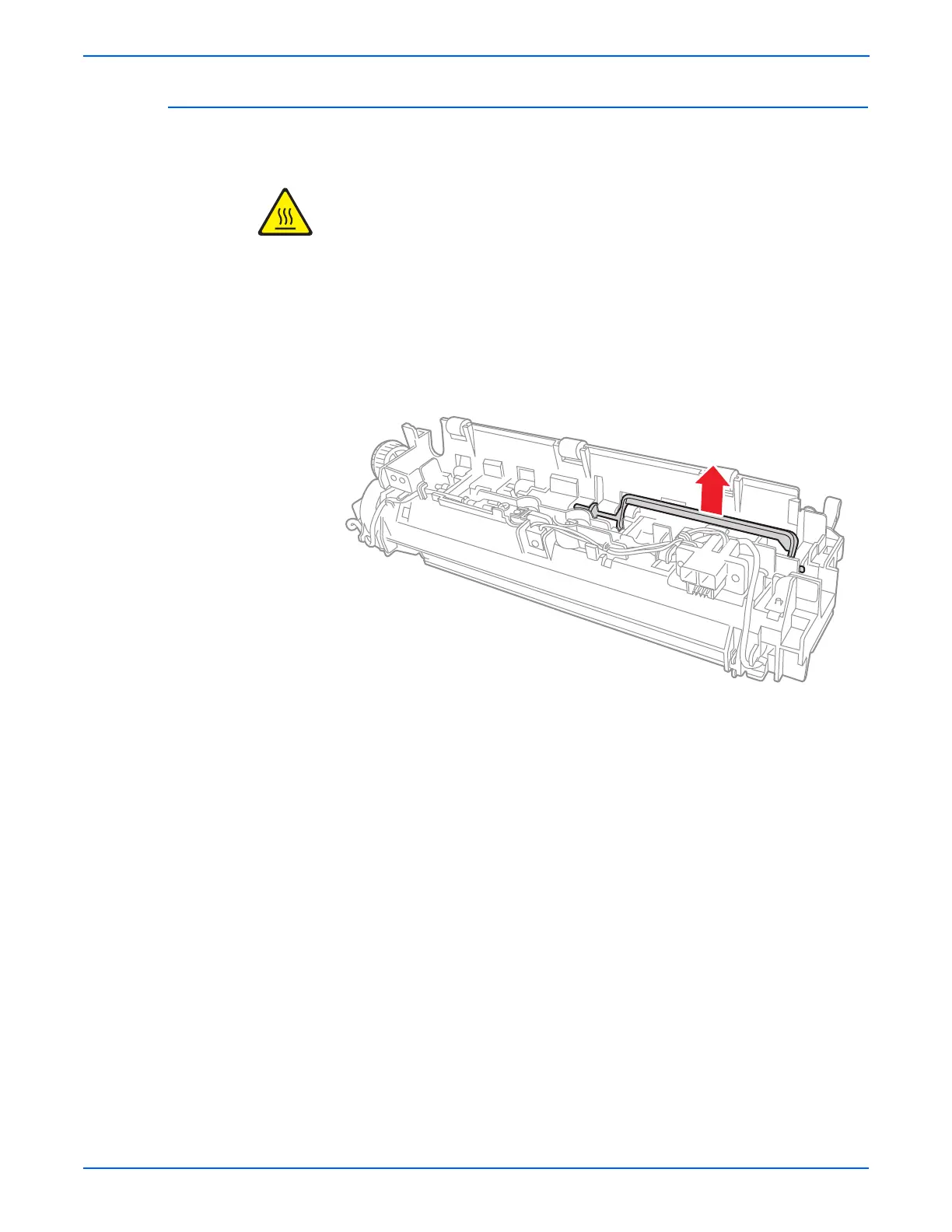

5. Release the Exit Actuator from the fuser.
