WorkCentre 3210/3220 Multifunction Printer Service Manual 8-79
Service Parts Disassembly

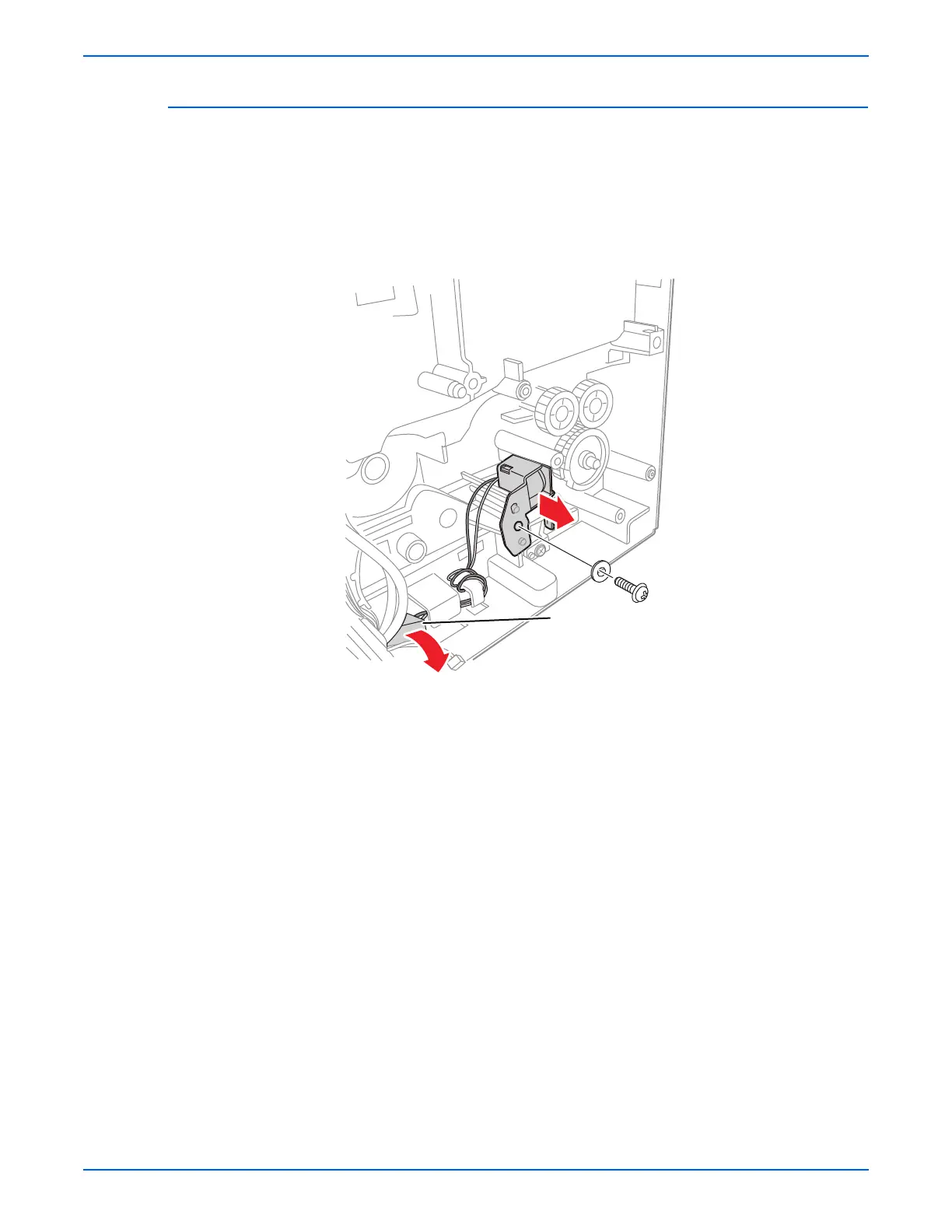

Pick Up Solenoid
PL4.0.37
1. Remove the Drive Unit Assembly (page 8-98).
2. Disconnect the black and gray wiring harness connector CN33.
3. Remove 1 screw (12 mm, silver) that secures the Pick Up Solenoid.
4. Remove the Pick Up Solenoid.
To Next Page
