Xerox WORKCENTRE 3210 Service Manual

WorkCentre 3210/3220 Multifunction Printer Service Manual A-3
Reference

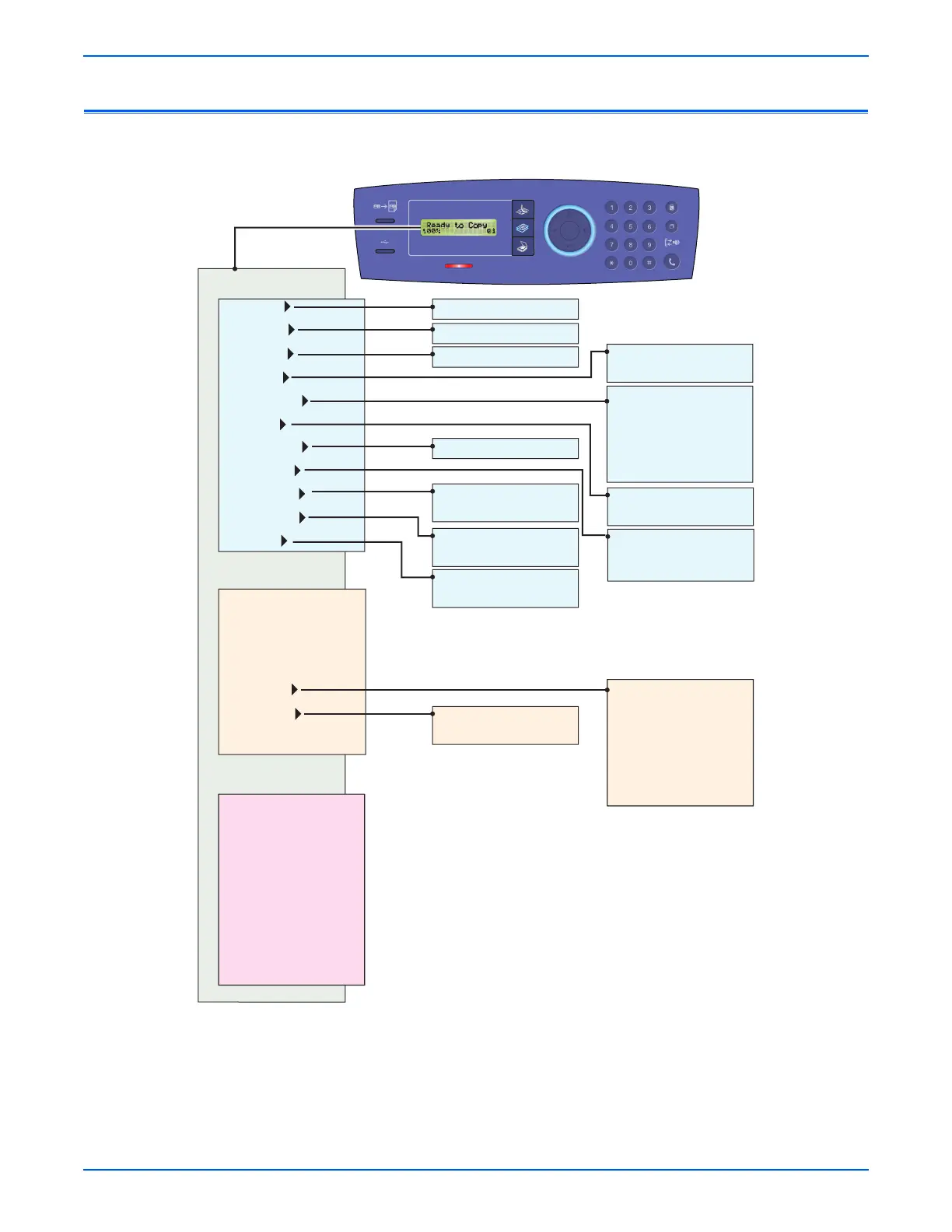

Tech Mode Menu Map
s3210mfp-253
@ / . ‘
ABC
DEF
GHI JKL MNO
PQRS TUV
Back
Status
Direct USB
WorkCentre 3220
ID Card Copy
i
Menu
& + - ,
WXYZ
Address Book
Redial / Pause
On Hook Dial
OK
Data Setup
Machine Test
Report
Send Level
DTMF Level
Pause Time
Dial Mode
Modem Speed
Error Rate
Clear All Mem
Clear Counts
Engine Footer
Width Sensor
USB Ports
[9-15]:12
Select A Country...
[0-15]:6
[1-9]:3
Tone
Pulse
On
Off
On
Off
Front Port
Rear Port
Shading & Print
Print
Total Page Cnt
FLT Scan Cnt
ADF Scan Cnt
10%
5%
33.6
28.8
14.4
12
9.6
4.8
Pattern-1
Pattern-2
Pattern-3
Pattern-4
Pattern-5
Pattern-6
Pattern-7
Pattern-8
All Report
Protocol
Configuration
Supplies Info
Error Info
Usage Page
Component Check
Service Support
Switch Test
Modem Test
DRAM Test
ROM Test
Pattern Test
Shading Test
Restart Machine
