WorkCentre 3210/3220 Multifunction Printer Service Manual 8-57
Service Parts Disassembly
Upper Platen
PL6.3.2

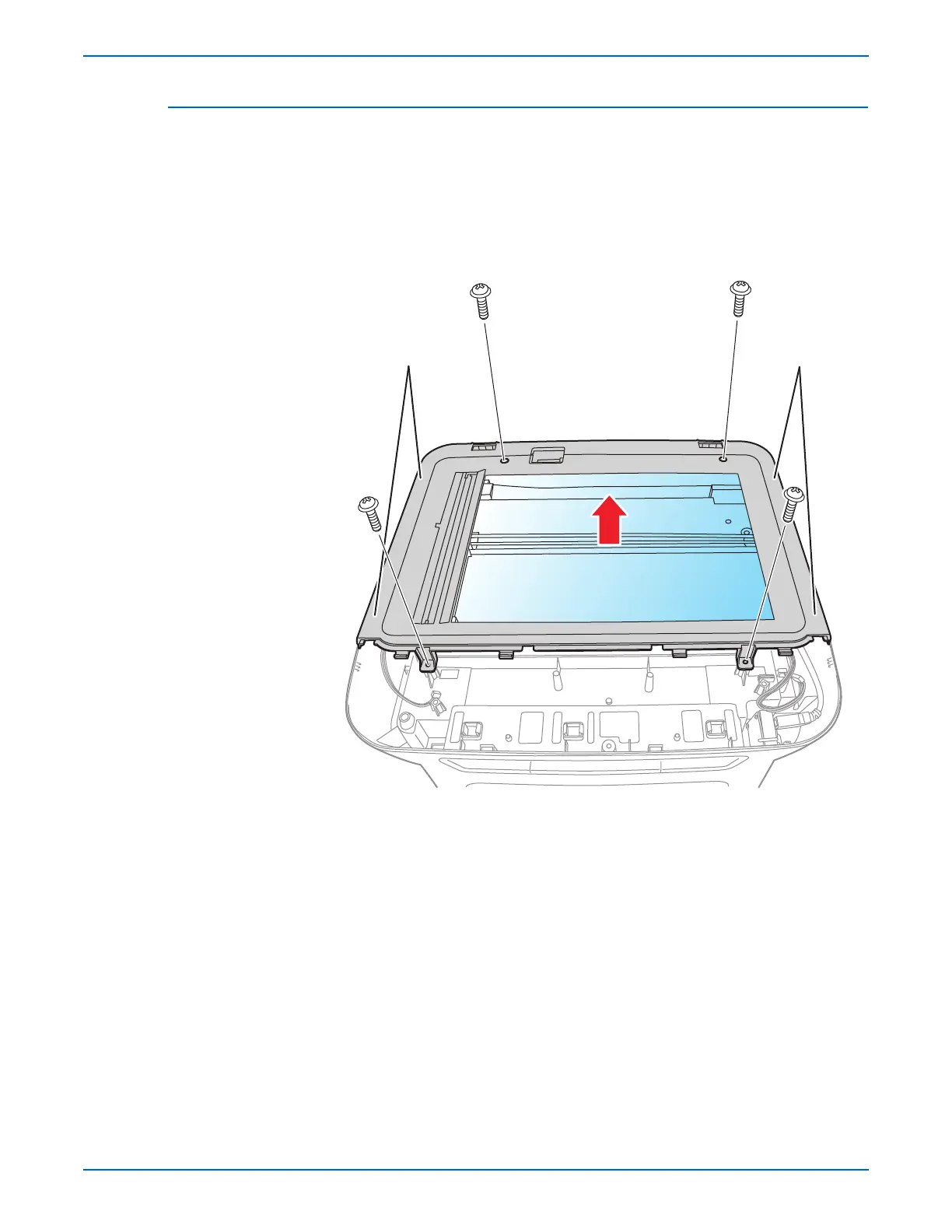

1. Remove the Control Panel (page 8-114).
2. Remove 4 screws (12 mm, silver) that secure the Upper Platen.
3. Pry the Upper Platen to release the 4 latches.
4. Lift and remove the Upper Platen.
Latches Latches
s3210mfp-172
To Next Page
