8-34 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
ADF Motor
PL6.1.4
1. Remove the ADF Feeder Assembly (page 8-39).
2. Remove the ADF Stacker (page 8-43).
3. Remove the Upper ADF (page 8-40).
4. Remove the Lower ADF (page 8-36).

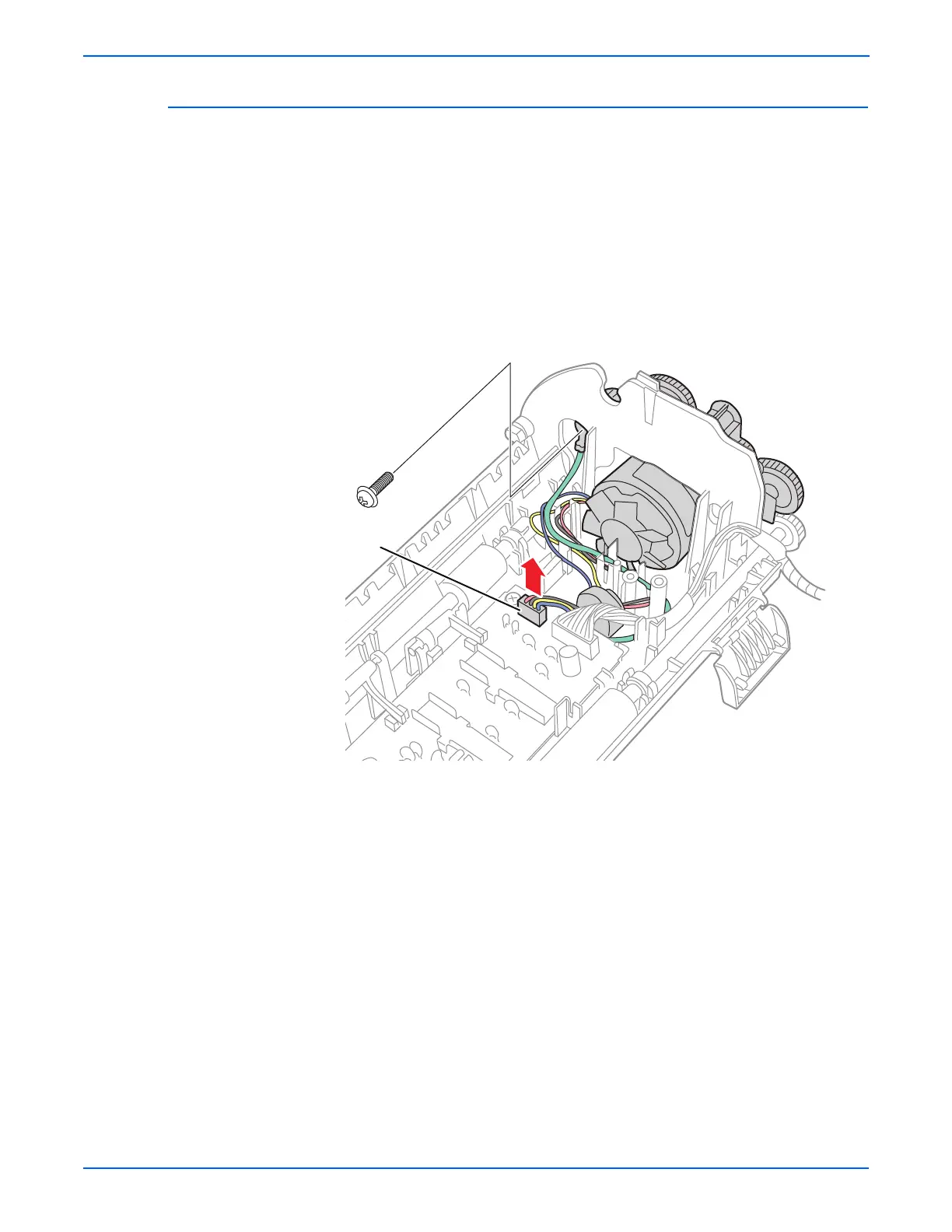

5. Disconnect the wiring harness connector CN2.
6. Remove 1 screw (12 mm, silver) that secures the ground wire.
To Next Page
