WorkCentre 3210/3220 Multifunction Printer Service Manual 8-47
Service Parts Disassembly

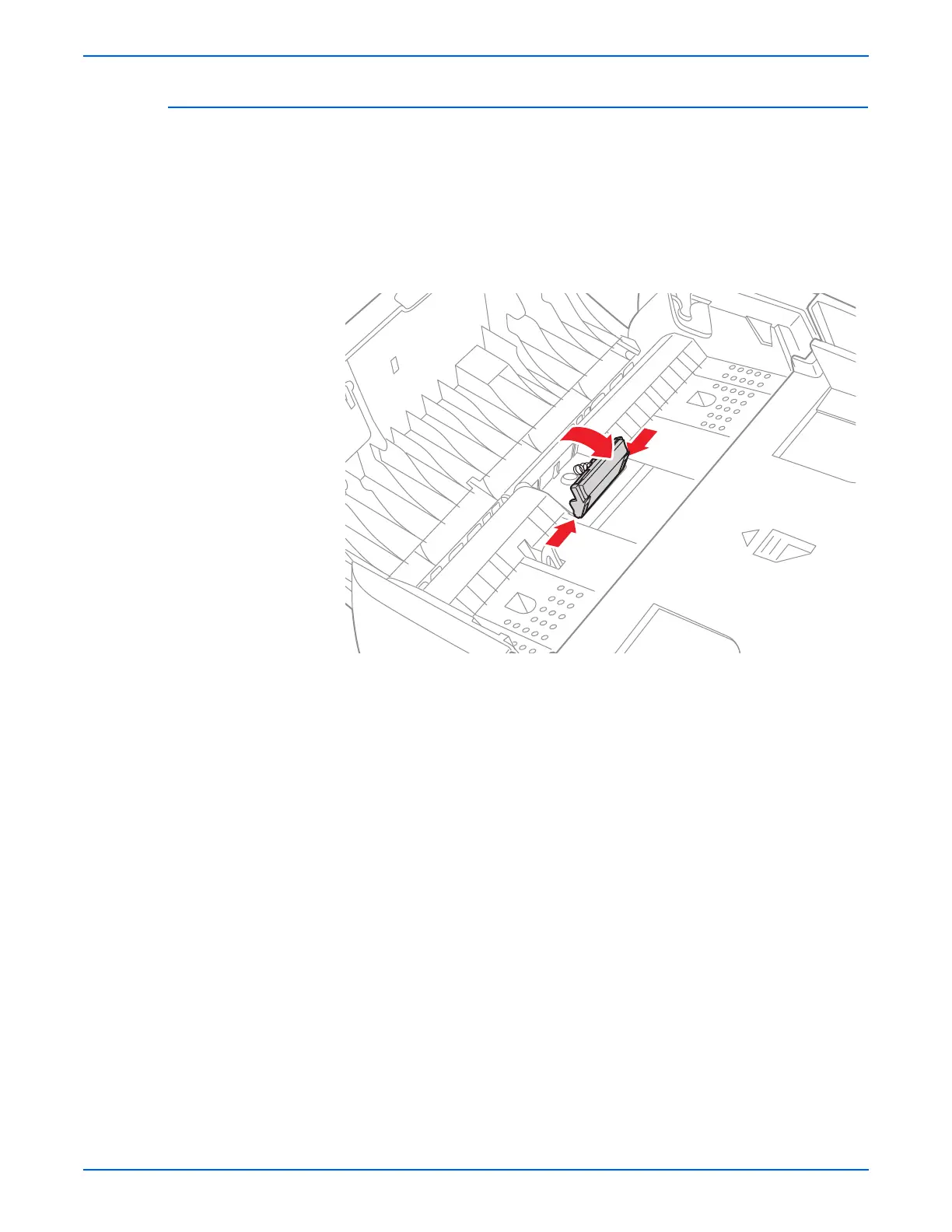

ADF Feed Pad Assembly
PL6.1.11
1. Remove the ADF Feeder Assembly (page 8-39).
2. Pry the ADF Feed Pad Assembly upward toward the right side.
3. Press the left and right sides of the ADF Feed Pad Assembly inward to
release it from the upper ADF.
4. Remove the ADF Feed Pad Assembly.
To Next Page
